NMB Technologies Corp.

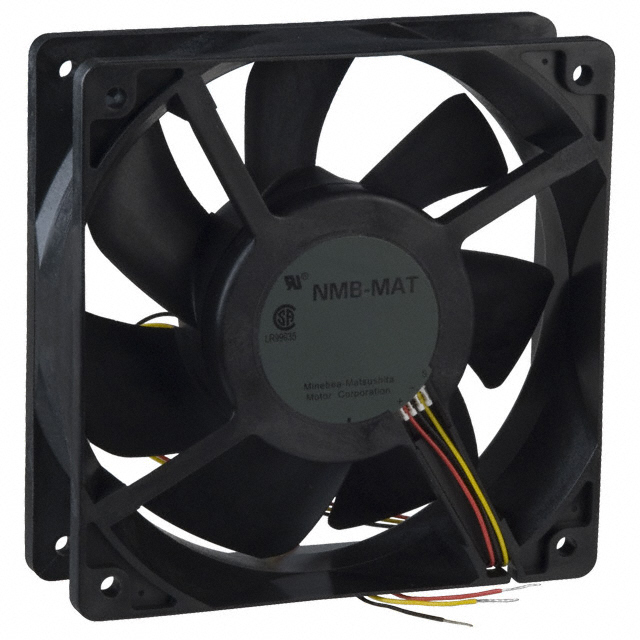

| Part Number | FBA12G12H1BX | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 120X38MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3126 pcs | Data sheet | 1.FBA12G12H1BX.pdf2.FBA12G12H1BX.pdf3.FBA12G12H1BX.pdf |
| Width | 38.00mm | Weight | 0.595 lb (269.89g) |
| Voltage Range | 7 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.268 in H2O (66.7 Pa) |
| Size / Dimension | Square - 120mm L x 120mm H | Series | FBA |
| RPM | 2500 RPM | Power (Watts) | 4.44W |
| Other Names | P11050 P9789 P9789-ND |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 41.5 dB | Material - Frame | - |
| Material - Blade | - | Lifetime @ Temp. | 30000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.370A | Bearing Type | Hydro-wave (HWB) |
| Approvals | CSA, UL | Air Flow | 103.8 CFM (2.91m³/min) |
