NMB Technologies Corp.

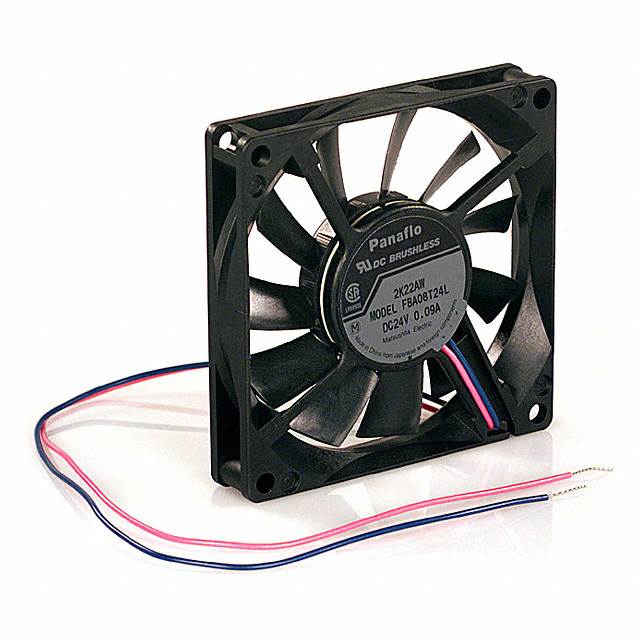

| Part Number | FBA08T24L | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 80X15MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4133 pcs | Data sheet | 1.FBA08T24L.pdf2.FBA08T24L.pdf3.FBA08T24L.pdf |
| Width | 15.00mm | Weight | 0.154 lb (69.85g) |
| Voltage Range | 14 ~ 27.6VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.061 in H2O (15.2 Pa) |
| Size / Dimension | Square - 80mm L x 80mm H | Series | FBA |
| RPM | 2000 RPM | Power (Watts) | 1.13W |
| Other Names | FBA 08T24L FBA-08T24L P9734 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 23.0 dB | Material - Frame | - |
| Material - Blade | - | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.047A | Bearing Type | Hydro-wave (HWB) |
| Approvals | CSA, UL | Air Flow | 21.9 CFM (0.613m³/min) |
