NMB Technologies Corp.
| Part Number | FBA08A24L1A | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|

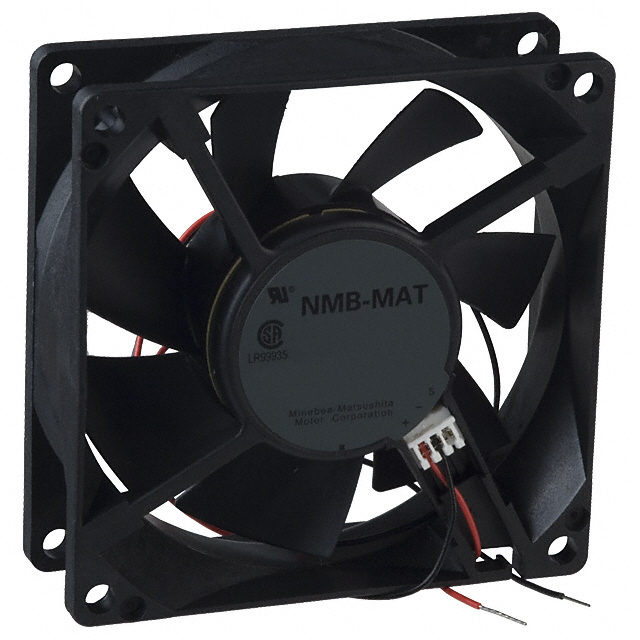

| Description | FAN AXIAL 80X25.5MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5708 pcs | Data sheet | 1.FBA08A24L1A.pdf2.FBA08A24L1A.pdf3.FBA08A24L1A.pdf |
| Width | 25.50mm | Weight | 0.22 lb (99.79g) |
| Voltage Range | 14 ~ 27.6VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.062 in H2O (15.4 Pa) |
| Size / Dimension | Square - 80mm L x 80mm H | Series | FBA |
| RPM | 1900 RPM | Power (Watts) | 1.30W |
| Other Names | FBA 08A24L1A FBA-08A24L1A P9739 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 21.0 dB | Material - Frame | - |
| Material - Blade | - | Lifetime @ Temp. | 50000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.054A | Bearing Type | Hydro-wave (HWB) |
| Approvals | CSA, UL | Air Flow | 24.0 CFM (0.672m³/min) |
