NMB Technologies Corp.

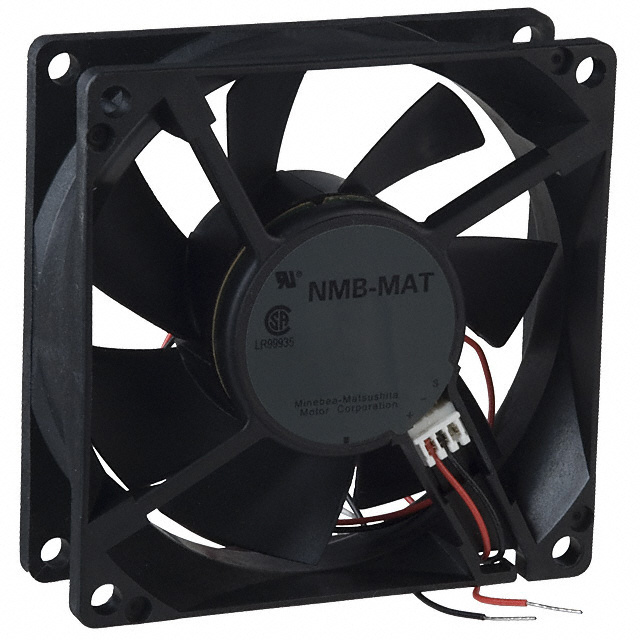

| Part Number | FBA08A12M1A | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 80X25.5MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5133 pcs | Data sheet | 1.FBA08A12M1A.pdf2.FBA08A12M1A.pdf3.FBA08A12M1A.pdf |
| Width | 25.50mm | Weight | 0.22 lb (99.79g) |
| Voltage Range | 7 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.099 in H2O (24.6 Pa) |
| Size / Dimension | Square - 80mm L x 80mm H | Series | FBA |
| RPM | 2450 RPM | Power (Watts) | 1.49W |
| Other Names | FBA 08A12M1A FBA-08A12M1A P9737 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 28.0 dB | Material - Frame | - |
| Material - Blade | - | Lifetime @ Temp. | 50000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.124A | Bearing Type | Hydro-wave (HWB) |
| Approvals | CSA, UL | Air Flow | 32.1 CFM (0.899m³/min) |
