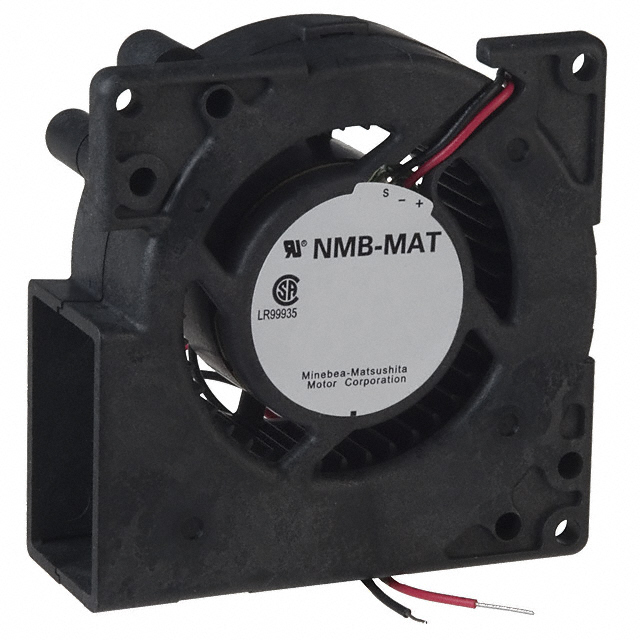

NMB Technologies Corp.
| Part Number | FAL5F12LL | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN BLOWER 76X28MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5181 pcs | Data sheet | 1.FAL5F12LL.pdf2.FAL5F12LL.pdf3.FAL5F12LL.pdf |
| Width | 28.00mm | Weight | 0.22 lb (99.79g) |
| Voltage Range | 7 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.244 in H2O (60.8 Pa) |
| Size / Dimension | Square/Rounded - 76mm L x 76mm H | Series | FAL-5F |
| RPM | 2400 RPM | Power (Watts) | 1.68W |
| Other Names | FAL 5F12LL FAL-5F12LL P9757 |
Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Noise | 30.0 dB | Material - Frame | - |
| Material - Blade | - | Lifetime @ Temp. | 40000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Blower |
| Current Rating | 0.140A | Bearing Type | Hydro-wave (HWB) |
| Approvals | CSA, UL | Air Flow | 8.8 CFM (0.246m³/min) |
