NMB Technologies Corp.
| Part Number | BG0903-B047-00S-00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|

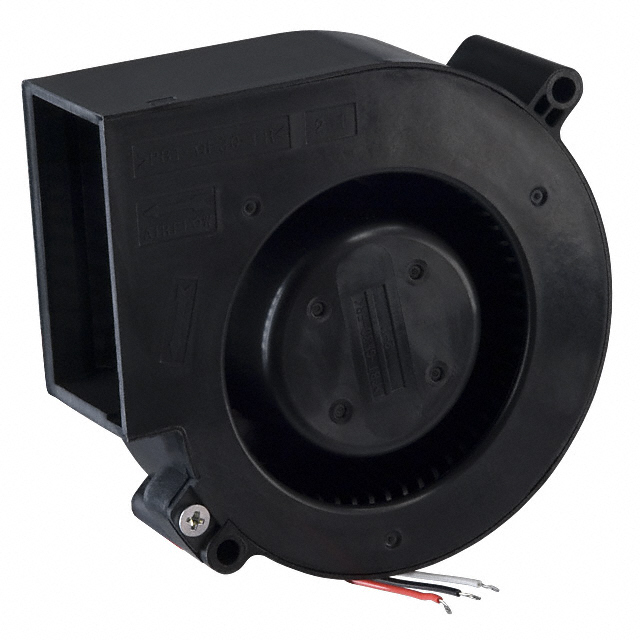

| Description | FAN BLOWER 97X33MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4554 pcs | Data sheet | 1.BG0903-B047-00S-00.pdf2.BG0903-B047-00S-00.pdf3.BG0903-B047-00S-00.pdf |
| Width | 33.00mm | Weight | 0.463 lb (210.01g) |
| Voltage Range | 10.8 ~ 12.6VDC | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | 1.935 in H2O (482.0 Pa) |
| Size / Dimension | Rectangular/Rounded - 97mm L x 93.5mm H | Series | 09533GA |
| RPM | 5200 RPM | Power (Watts) | 19.20W |
| Other Names | 09533GA-12Q-AT-00 BG0903B04700S00 P13442 |
Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Noise | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | 100000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Speed Sensor (Tach) | Fan Type | Blower |
| Current Rating | 1.6A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 38.1 CFM (1.07m³/min) |
