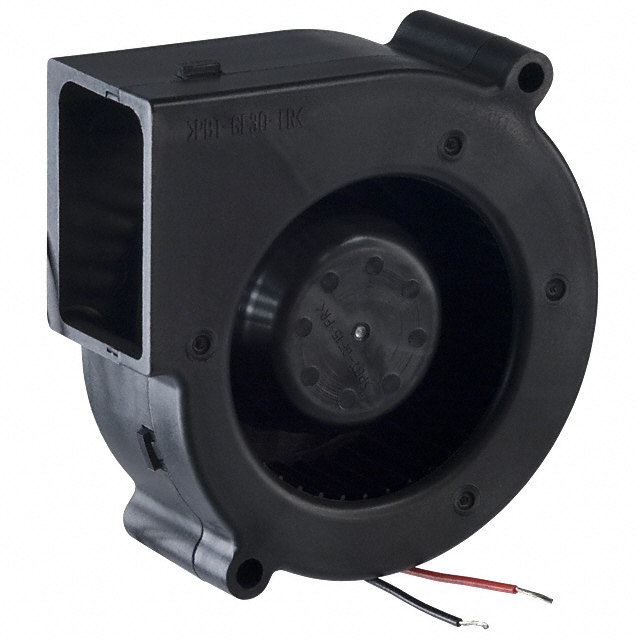

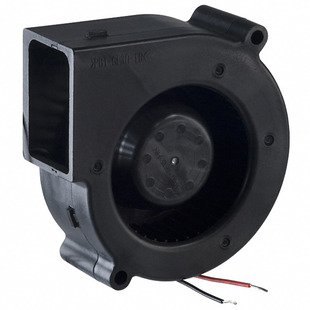

NMB Technologies Corp.
| Part Number | BG0703-B044-000-00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN BLOWER 75.7X30MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7210 pcs | Data sheet | 1.BG0703-B044-000-00.pdf2.BG0703-B044-000-00.pdf3.BG0703-B044-000-00.pdf |
| Width | 30.00mm | Weight | 0.198 lb (89.81g) |
| Voltage Range | 6 ~ 13VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.441 in H2O (110.0 Pa) |
| Size / Dimension | Square/Rounded - 75mm L x 75mm H | Series | 07530GA |
| RPM | 3000 RPM | Power (Watts) | 3.48W |
| Other Names | 07530GA-12M-AA-00 BG0703B04400000 P12906 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 38.5 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Blower |
| Current Rating | 0.290A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 10.6 CFM (0.297m³/min) |
