NMB Technologies Corp.

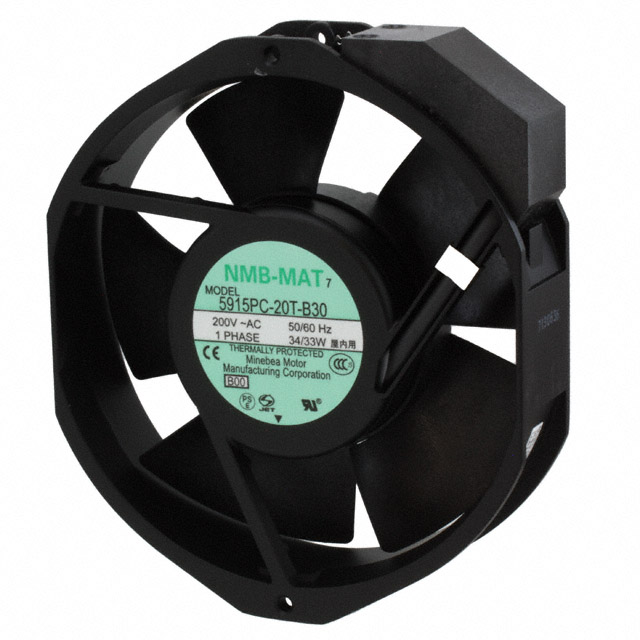

| Part Number | 5915PC-20T-B30-B00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 172X38MM 200VAC TERM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 945 pcs | Data sheet | 1.5915PC-20T-B30-B00.pdf2.5915PC-20T-B30-B00.pdf3.5915PC-20T-B30-B00.pdf |
| Width | 38.00mm | Weight | 1.8 lbs (816.5g) |
| Voltage Range | - | Voltage - Rated | 200VAC |
| Termination | 2 Terminals | Static Pressure | 0.865 in H2O (215.6 Pa) |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H | Series | 15038PB |
| RPM | 3200 RPM | Power (Watts) | 33.00W |
| Other Names | 15038PB-B0L-EP-00 5915PC20TB30B00 P14990 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 56.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Aluminum | Material - Blade | Polycarbonate (PC), Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 16 Weeks | Lifetime @ Temp. | 50000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.210A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 212.0 CFM (5.94m³/min) |
