NMB Technologies Corp.

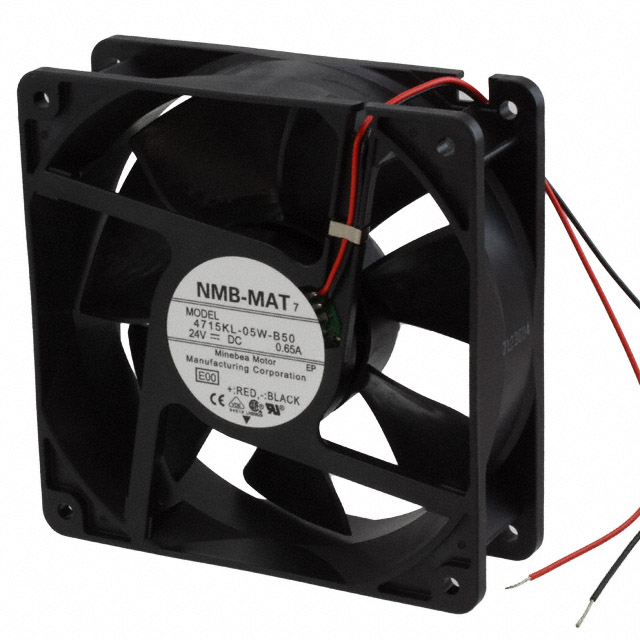

| Part Number | 4715KL-05W-B50-E00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 119X38.4MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6694 pcs | Data sheet | 1.4715KL-05W-B50-E00.pdf2.4715KL-05W-B50-E00.pdf3.4715KL-05W-B50-E00.pdf |
| Width | 38.40mm | Weight | 0.573 lb (259.91g) |
| Voltage Range | 18 ~ 25VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.440 in H2O (109.6 Pa) |
| Size / Dimension | Square - 119mm L x 119mm H | Series | 11938KA |
| RPM | 3600 RPM | Power (Watts) | 12.00W |
| Other Names | 11938KA-24N-EA-00 4715KL-05W-B50-E00-ND 4715KL05WB50E00 P15675 |
Operating Temperature | 14 ~ 104°F (-10 ~ 40°C) |
| Noise | 50.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | 50000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.5A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 130.0 CFM (3.64m³/min) |
