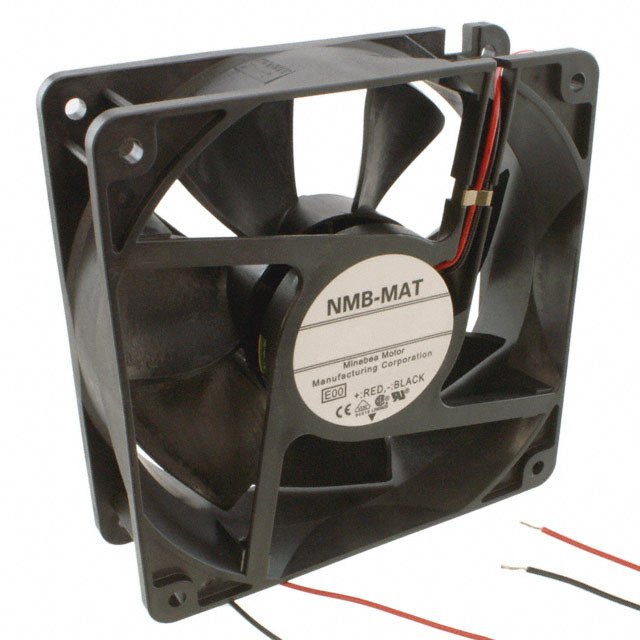

NMB Technologies Corp.
| Part Number | 4715KL-04W-B30-E00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 119X38.4MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5495 pcs | Data sheet | 1.4715KL-04W-B30-E00.pdf2.4715KL-04W-B30-E00.pdf3.4715KL-04W-B30-E00.pdf |
| Width | 38.40mm | Weight | 0.573 lb (259.91g) |
| Voltage Range | 6 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.270 in H2O (67.2 Pa) |
| Size / Dimension | Square - 119mm L x 119mm H | Series | 11938KA |
| RPM | 2950 RPM | Power (Watts) | 6.60W |
| Other Names | 11938KA-12L-EA-00 4715KL04WB30E00 P15272 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 42.5 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | 50000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.550A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 108.0 CFM (3.02m³/min) |
