NMB Technologies Corp.

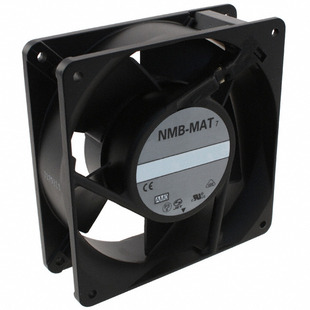

| Part Number | 4715HS-12T-B50-AM0 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 119X38MM 115VAC TERM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3326 pcs | Data sheet | 1.4715HS-12T-B50-AM0.pdf2.4715HS-12T-B50-AM0.pdf3.4715HS-12T-B50-AM0.pdf |
| Width | 38.00mm | Weight | 1.3 lbs (589.7g) |
| Voltage Range | - | Voltage - Rated | 115VAC |
| Termination | 2 Terminals | Static Pressure | 0.400 in H2O (99.6 Pa) |
| Size / Dimension | Square - 119mm L x 119mm H | Series | 11938SB |
| RPM | 3100 RPM | Power (Watts) | 15.50W |
| Other Names | 11938SB-A1N-QA-U0 4715HS12TB50AM0 P13598 |
Operating Temperature | 14 ~ 149°F (-10 ~ 65°C) |
| Noise | 44.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Aluminum | Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 16 Weeks | Lifetime @ Temp. | 100000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.025A | Bearing Type | Ball |
| Approvals | CE, UL, VDE | Air Flow | 105.9 CFM (2.97m³/min) |
