NMB Technologies Corp.
| Part Number | 4715FS-12T-B20-D00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|

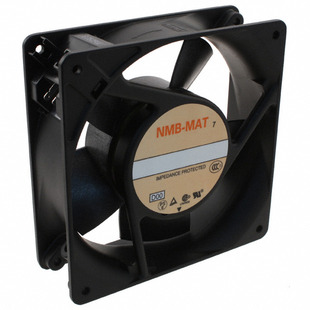

| Description | FAN AXIAL 119X38MM 115VAC TERM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6062 pcs | Data sheet | 1.4715FS-12T-B20-D00.pdf2.4715FS-12T-B20-D00.pdf3.4715FS-12T-B20-D00.pdf |
| Width | 38.00mm | Weight | 1.2 lbs (544.3g) |
| Voltage Range | - | Voltage - Rated | 115VAC |
| Termination | 2 Terminals | Static Pressure | 0.130 in H2O (32.5 Pa) |
| Size / Dimension | Square - 119mm L x 119mm H | Series | 11938FB |
| RPM | 2300 RPM | Power (Watts) | 9.80W |
| Other Names | 11938FB-A1K-EA-00 4715FS12TB20D00 P13105 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 36.0 dB | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Aluminum | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 16 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.100A | Bearing Type | Ball |
| Approvals | CE, CSA, TUV, UL | Air Flow | 80.0 CFM (2.24m³/min) |
