NMB Technologies Corp.

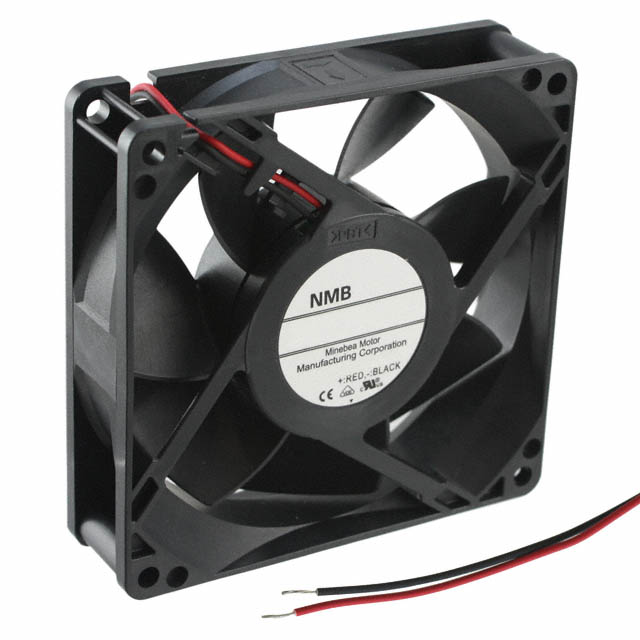

| Part Number | 3610VL-05W-B70-E00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 92X25MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7220 pcs | Data sheet | 1.3610VL-05W-B70-E00.pdf2.3610VL-05W-B70-E00.pdf |
| Width | 25.00mm | Weight | 0.298 lb (135.17g) |
| Voltage Range | 14 ~ 27.6VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.602 in H2O (149.9 Pa) |
| Size / Dimension | Square - 92mm L x 92mm H | Series | 09225VA |
| RPM | 5600 RPM | Power (Watts) | 9.12W |
| Other Names | 09225VA-24Q-EA-00 3610VL05WB70E00 P14697 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 51.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | 100000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.380A | Bearing Type | Ball |
| Approvals | CE, UL, VDE | Air Flow | 96.4 CFM (2.70m³/min) |
