NMB Technologies Corp.
| Part Number | 3610VL-04W-B29-E50 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|

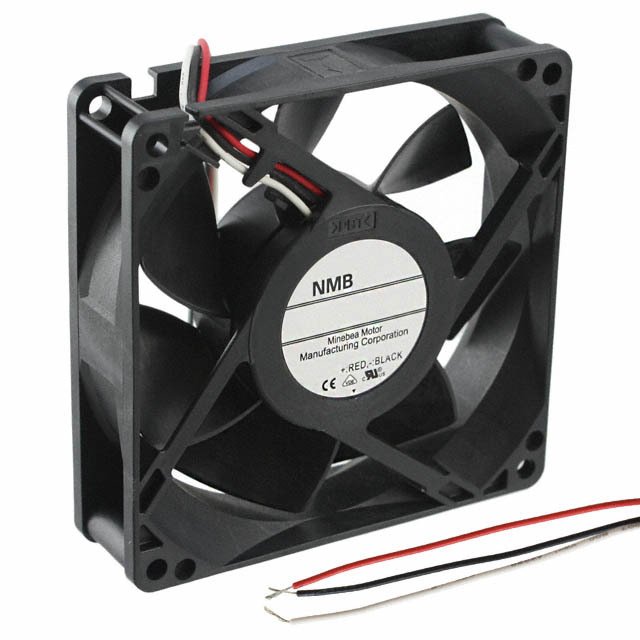

| Description | FAN AXIAL 92X25MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4655 pcs | Data sheet | 1.3610VL-04W-B29-E50.pdf2.3610VL-04W-B29-E50.pdf |
| Width | 25.00mm | Weight | 0.298 lb (135.17g) |
| Voltage Range | 7 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.200 in H2O (49.9 Pa) |
| Size / Dimension | Square - 92mm L x 92mm H | Series | 09225VA |
| RPM | 3200 RPM | Power (Watts) | 2.16W |
| Other Names | 09225VA-12K-ET-00 3610VL04WB29E50 3610VL04WB29E50-ND |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 35.5 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Lifetime @ Temp. | 100000 Hrs @ 25°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | Speed Sensor (Tach) |
| Fan Type | Tubeaxial | Current Rating | 0.180A |
| Bearing Type | Ball | Approvals | CE, UL, VDE |
| Air Flow | 54.0 CFM (1.51m³/min) |
