NMB Technologies Corp.

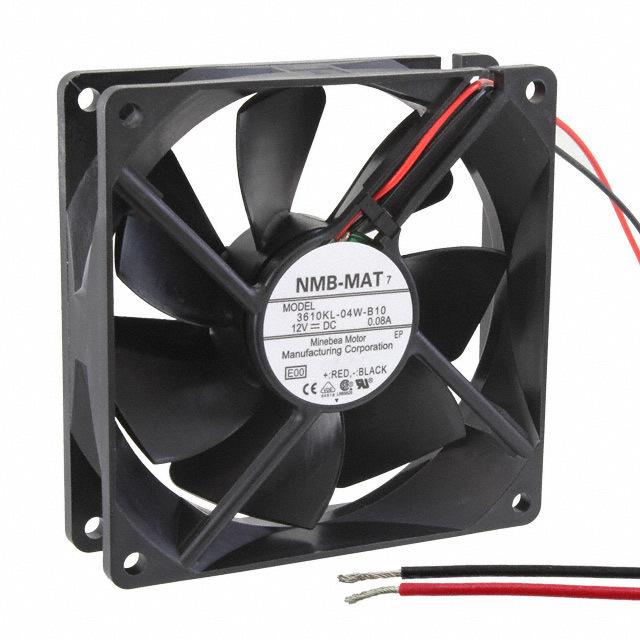

| Part Number | 3610KL-04W-B10-E00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 92X25MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7893 pcs | Data sheet | 1.3610KL-04W-B10-E00.pdf2.3610KL-04W-B10-E00.pdf3.3610KL-04W-B10-E00.pdf |
| Width | 25.00mm | Weight | 0.209 lb (94.8g) |
| Voltage Range | 6 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.057 in H2O (14.2 Pa) |
| Size / Dimension | Square - 92mm L x 92mm H | Series | 3610KL |
| RPM | 1750 RPM | Power (Watts) | 880mW |
| Other Names | 09225KA-12J-EA-00 3610KL04WB10E00 P14756 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 25.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | 100000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.073A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 26.5 CFM (0.742m³/min) |
