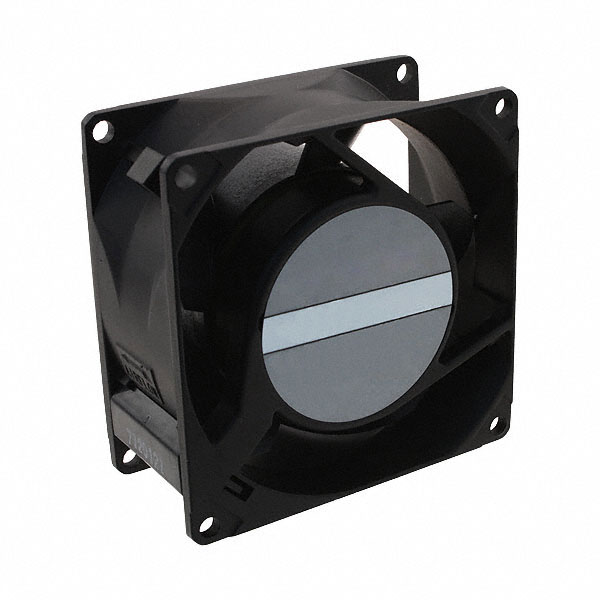

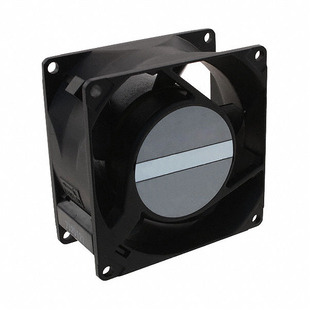

NMB Technologies Corp.
| Part Number | 3115FS-23T-B20-A00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 80X38MM 230VAC TERM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6167 pcs | Data sheet | 1.3115FS-23T-B20-A00.pdf2.3115FS-23T-B20-A00.pdf3.3115FS-23T-B20-A00.pdf |
| Width | 38.00mm | Weight | 0.74 lb (335.66g) |
| Voltage Range | - | Voltage - Rated | 230VAC |
| Termination | 2 Terminals | Static Pressure | 0.130 in H2O (32.5 Pa) |
| Size / Dimension | Square - 80mm L x 80mm H | Series | 08038FB |
| RPM | 2750 RPM | Power (Watts) | 7.50W |
| Other Names | 08038FB-B3K-EA-00 3115FS23TB20A00 P12991 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 40.0 dB | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Aluminum | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 16 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.060A | Bearing Type | Ball |
| Approvals | CE, CSA, TUV, UL, VDE | Air Flow | 28.0 CFM (0.784m³/min) |
