NMB Technologies Corp.
| Part Number | 3112KL-05W-B60-E00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|

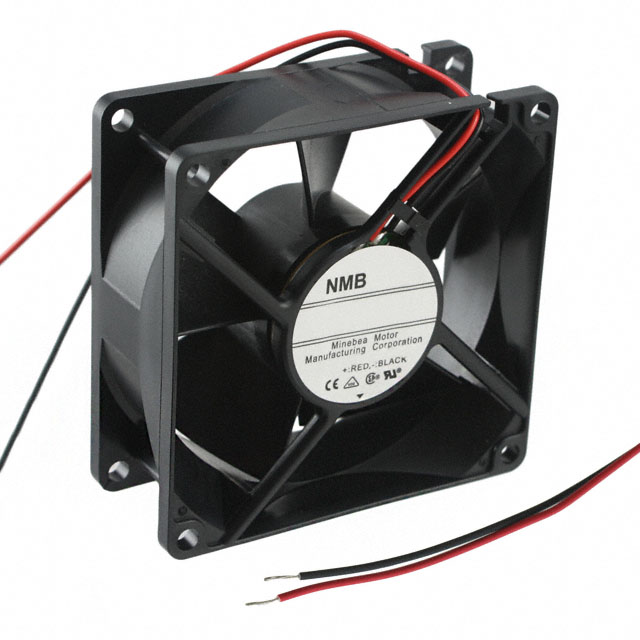

| Description | FAN AXIAL 80X32MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7965 pcs | Data sheet | 1.3112KL-05W-B60-E00.pdf2.3112KL-05W-B60-E00.pdf3.3112KL-05W-B60-E00.pdf |
| Width | 32.00mm | Weight | 0.209 lb (94.8g) |
| Voltage Range | 10 ~ 25.2VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.317 in H2O (78.9 Pa) |
| Size / Dimension | Square - 80mm L x 80mm H | Series | 3112KL |
| RPM | 4350 RPM | Power (Watts) | 5.04W |
| Other Names | 08032KA-24P-EA-00 3112KL-05W-B60-E00-ND 3112KL05WB60E00 3112KL05WB60E00-ND P15656 |
Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Noise | 44.0 dB | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | 100000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.210A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 58.6 CFM (1.64m³/min) |
