NMB Technologies Corp.

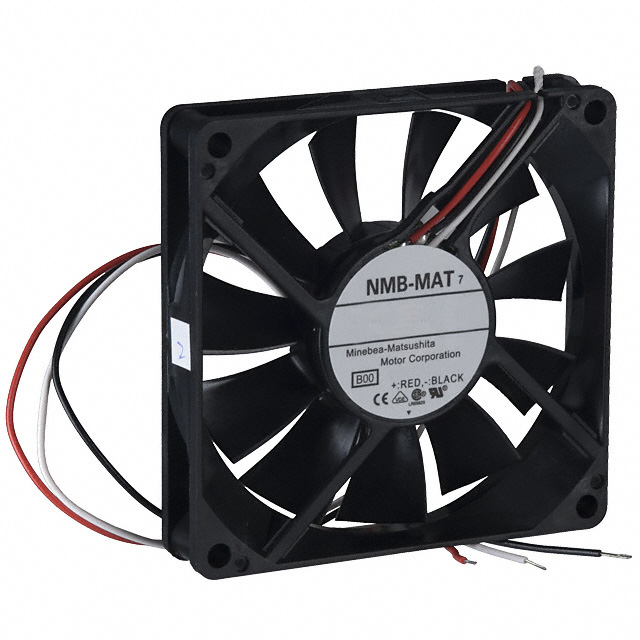

| Part Number | 3106KL-04W-B59-B50 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 80X15MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8314 pcs | Data sheet | 1.3106KL-04W-B59-B50.pdf2.3106KL-04W-B59-B50.pdf3.3106KL-04W-B59-B50.pdf |
| Width | 15.00mm | Weight | 0.111 lb (50.35g) |
| Voltage Range | 6 ~ 13VDC | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.120 in H2O (29.9 Pa) |
| Size / Dimension | Square - 80mm L x 80mm H | Series | 3106KL |
| RPM | 3000 RPM | Power (Watts) | 2.76W |
| Other Names | 3106KL-04W-B59-B50-ND 3106KL04WB59B50 3106KL04WB59B50 -ND 3106KL04WB59B50-ND P15599 |
Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Noise | 34.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | 70000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.230A | Bearing Type | Ball |
| Approvals | - | Air Flow | 32.8 CFM (0.918m³/min) |
