NMB Technologies Corp.
| Part Number | 2408NL-04W-B50-L00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|

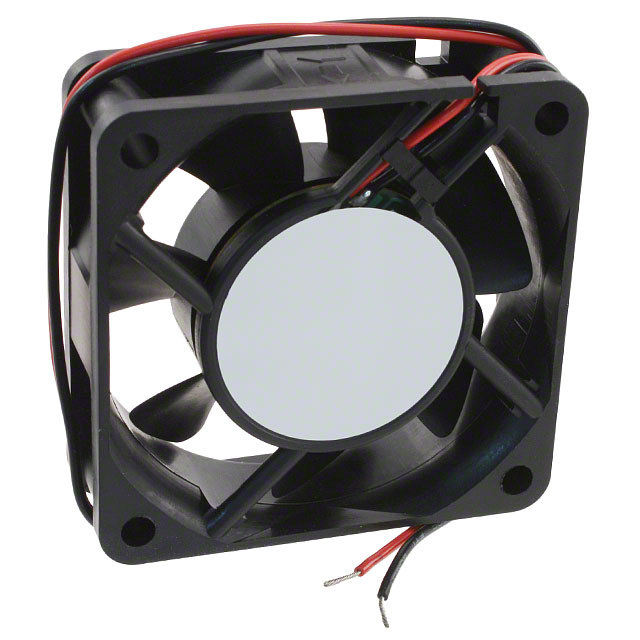

| Description | FAN AXIAL 60X20MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10393 pcs | Data sheet | 1.2408NL-04W-B50-L00.pdf2.2408NL-04W-B50-L00.pdf3.2408NL-04W-B50-L00.pdf |
| Width | 20.00mm | Weight | 0.187 lb (84.82g) |
| Voltage Range | 6 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.162 in H2O (40.5 Pa) |
| Size / Dimension | Square - 60mm L x 60mm H | Series | 2408NL |
| RPM | 4400 RPM | Power (Watts) | 1.32W |
| Other Names | 06020MA-12N-AA-00 2408NL04WB50L00 P12831 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 31.5 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.110A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 17.6 CFM (0.493m³/min) |
