NMB Technologies Corp.

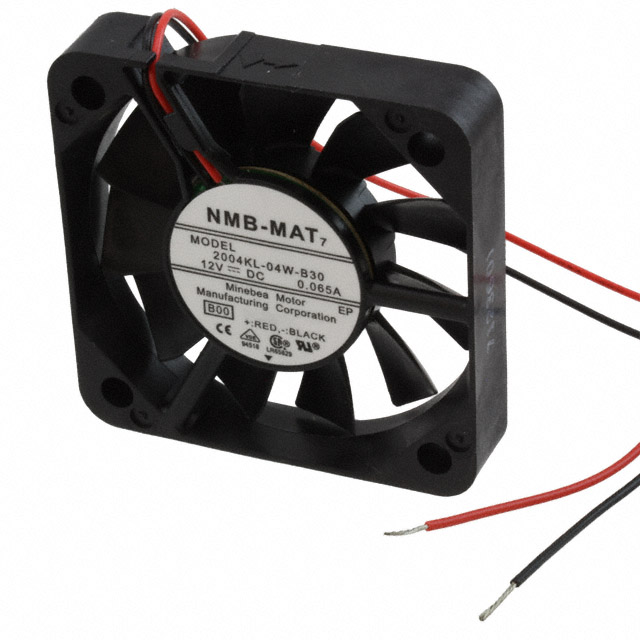

| Part Number | 2004KL-04W-B30-B00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 50X10MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10111 pcs | Data sheet | 1.2004KL-04W-B30-B00.pdf2.2004KL-04W-B30-B00.pdf3.2004KL-04W-B30-B00.pdf |
| Width | 10.00mm | Weight | 0.044 lb (19.96g) |
| Voltage Range | 10.2 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.064 in H2O (16.0 Pa) |
| Size / Dimension | Square - 50mm L x 50mm H | Series | 2004KL |
| RPM | 3500 RPM | Power (Watts) | 480mW |
| Other Names | 05010KA-12L-AA-00 2004KL-04W-B30-B00-ND 2004KL04WB30B00 2004KL04WB30B00-ND P15614 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 23.0 dB | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | 60000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.040A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 6.4 CFM (0.179m³/min) |
