Part Number | 1619FT-04W-B86-B50 | Manufacturer | NMB Technologies Corp. |
---|---|---|---|

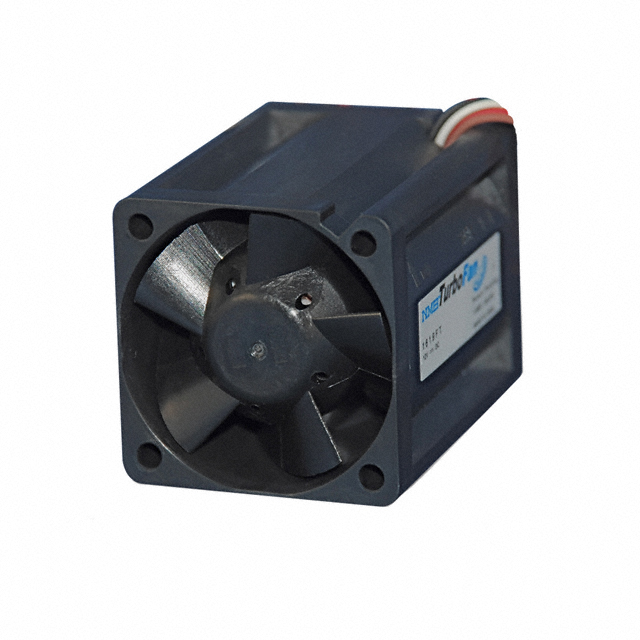

Description | FAN AXIAL 40X48MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 3932 pcs | Data sheet | 1.1619FT-04W-B86-B50.pdf2.1619FT-04W-B86-B50.pdf3.1619FT-04W-B86-B50.pdf |
Width | 48.00mm | Weight | 0.156 lb (70.76g) |
Voltage Range | 10.8 ~ 13.2VDC | Voltage - Rated | 12VDC |
Termination | 4 Wire Leads | Static Pressure | 3.290 in H2O (820.0 Pa) |
Size / Dimension | Square - 40mm L x 40mm H | Series | 1619FT |
RPM | 23000 RPM | Power (Watts) | 12.60W |
Other Names | 04048DA-12R-AU-00 1619FT04WB86B50 P14776 |
Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
Noise | 62.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material - Frame | Plastic | Material - Blade | Plastic |
Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | 70000 Hrs @ 40°C |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
Features | PWM Control, Speed Sensor (Tach) | Fan Type | Tubeaxial |
Current Rating | 1.05A | Bearing Type | Ball |
Approvals | UL, VDE | Air Flow | 28.9 CFM (0.809m³/min) |
