NMB Technologies Corp.

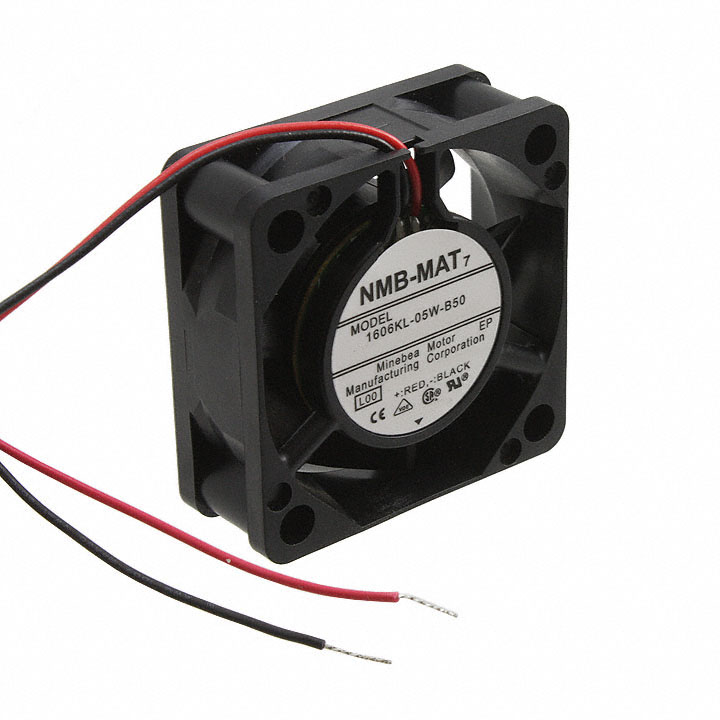

| Part Number | 1606KL-05W-B50-L00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 40X15MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10091 pcs | Data sheet | 1.1606KL-05W-B50-L00.pdf2.1606KL-05W-B50-L00.pdf3.1606KL-05W-B50-L00.pdf |
| Width | 15.00mm | Weight | 0.044 lb (19.96g) |
| Voltage Range | 22 ~ 25.2VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.252 in H2O (62.8 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | 1606KL |
| RPM | 8000 RPM | Power (Watts) | 1.49W |
| Other Names | 1606KL-05W-B50-L00-ND 1606KL05WB50L00 1606KL05WB50L00-ND P15611 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 34.0 dB | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.062A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 8.1 CFM (0.227m³/min) |
