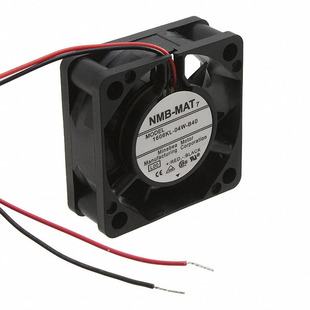

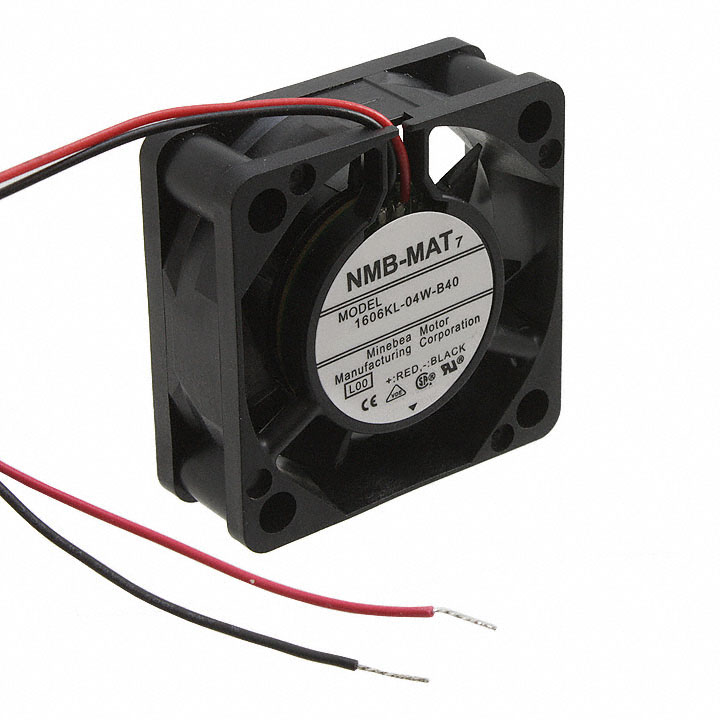

NMB Technologies Corp.
| Part Number | 1606KL-04W-B40-L00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 40X15MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10150 pcs | Data sheet | 1.1606KL-04W-B40-L00.pdf2.1606KL-04W-B40-L00.pdf3.1606KL-04W-B40-L00.pdf |
| Width | 15.00mm | Weight | 0.044 lb (19.96g) |
| Voltage Range | 10.2 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.189 in H2O (47.1 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | 1606KL |
| RPM | 7000 RPM | Power (Watts) | 900mW |
| Other Names | 1606KL-04W-B40-L00-ND 1606KL04WB40L00 1606KL04WB40L00-ND P15609 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 31.0 dB | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.075A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 7.0 CFM (0.196m³/min) |
