NMB Technologies Corp.

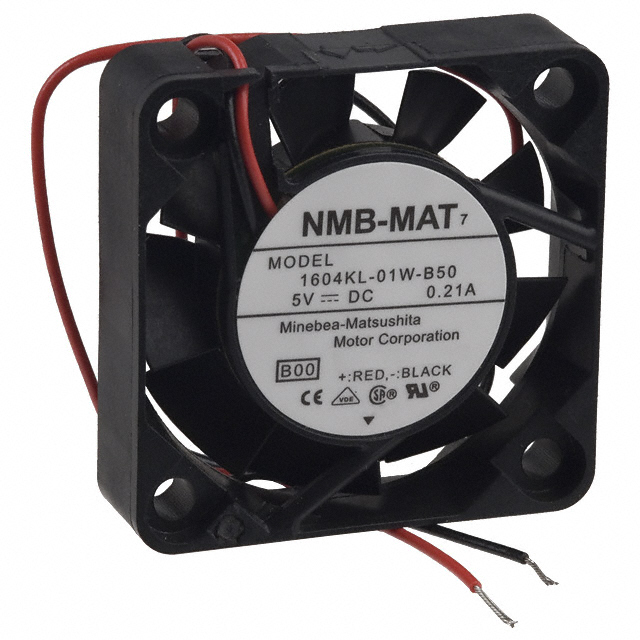

| Part Number | 1604KL-01W-B50-B00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 40X10MM BALL 5VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8563 pcs | Data sheet | 1.1604KL-01W-B50-B00.pdf2.1604KL-01W-B50-B00.pdf3.1604KL-01W-B50-B00.pdf4.1604KL-01W-B50-B00.pdf |
| Width | 10.00mm | Weight | 0.033 lb (14.97g) |
| Voltage Range | 4.5 ~ 5.5VDC | Voltage - Rated | 5VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.184 in H2O (46.0 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | 04010KA |
| RPM | 6500 RPM | Power (Watts) | 775mW |
| Other Names | 04010KA-05N-AA-00 1604KL01WB50B00 P12812 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 29.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.155A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 6.0 CFM (0.168m³/min) |
