NMB Technologies Corp.

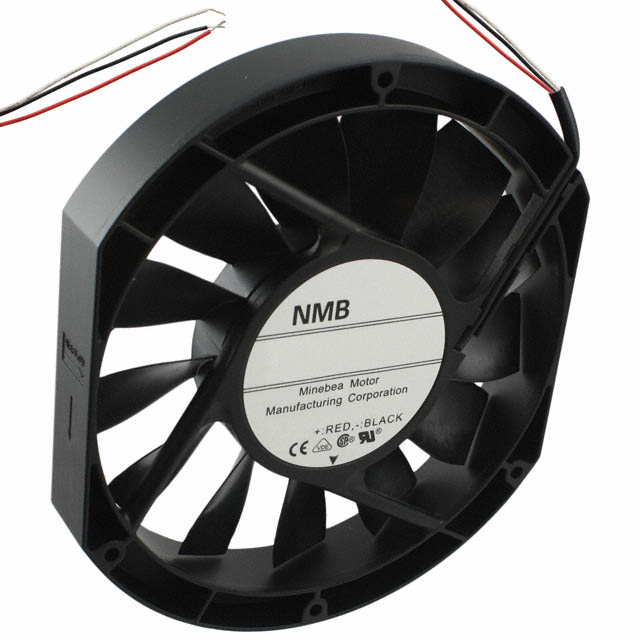

| Part Number | 15025PA-48Q-AL-C0 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 172X25.4MM 48VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2077 pcs | Data sheet | 1.15025PA-48Q-AL-C0.pdf2.15025PA-48Q-AL-C0.pdf3.15025PA-48Q-AL-C0.pdf |
| Width | 25.40mm | Weight | 1.102 lb (500.0g) |
| Voltage Range | 25 ~ 60VDC | Voltage - Rated | 48VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.935 in H2O (233.0 Pa) |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H | Series | 5910PL |
| RPM | 4100 RPM | Power (Watts) | 35.50W |
| Other Names | 15025PA-48Q-AL-00 5910PL07WB79L00 P13432 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 65.4 dB | Material - Frame | Aluminum |
| Material - Blade | Plastic | Manufacturer Standard Lead Time | 14 Weeks |
| Lifetime @ Temp. | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | Locked Rotor Sensor |
| Fan Type | Tubeaxial | Current Rating | 0.740A |
| Bearing Type | Ball | Approvals | CE, CSA, UL, VDE |
| Air Flow | 290.0 CFM (8.12m³/min) |
