14PY-Z247B

NMB Technologies Corp.

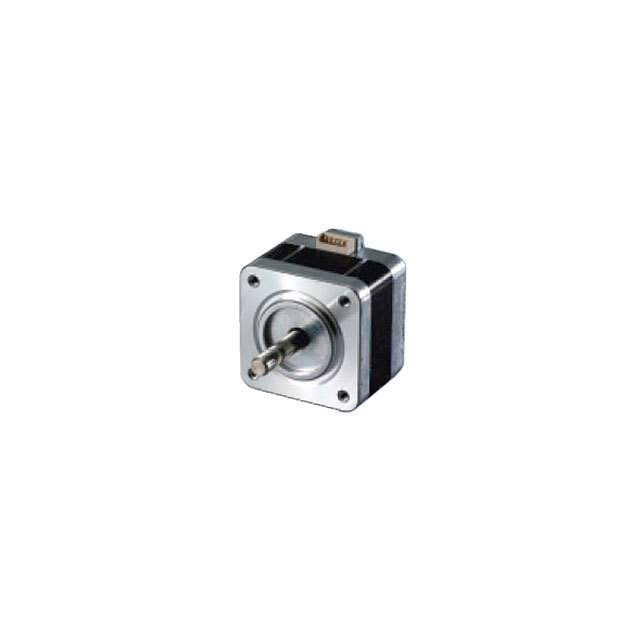

Image may be representation. See specifications for product details.

Product Overview

Part Number:	14PY-Z247B
Manufacturer/Brand:	NMB Technologies Corp.
Product description	STEPPER MOTOR HYBRID BIPOLAR 24V
Datasheets:	14PY-Z247B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2438 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2438 pcs

Reference Price (In US Dollars)

10 pcs: $14.302

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$14.302

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 14PY-Z247B

Part Number	14PY-Z247B	Manufacturer	NMB Technologies Corp.
Description	STEPPER MOTOR HYBRID BIPOLAR 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2438 pcs	Data sheet	14PY-Z247B.pdf
Weight	0.265 lb (120.2g)	Voltage - Rated	24VDC
Type	Hybrid	Torque - Holding (oz-in / mNm)	7.79 / 55
Termination Style	Connector	Steps per Revolution	400
Step Angle	0.9°	Size / Dimension	Square - 1.378" x 1.378" (35.00mm x 35.00mm)
Series	14PY	Rotor Inertia	8gcm²
Operating Temperature	-	NEMA Frame Size	14
Mounting Hole Spacing	1.023" (26.00mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	4 Weeks	Length - Shaft and Bearing	0.787" (20.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Round Shaft
Diameter - Shaft	0.197" (5.00mm)	Detailed Description	Bipolar Stepper Motor Frame Size 14 400 Step 0.6A 24VDC
Current Rating	600mA	Coil Type	Bipolar
Coil Resistance	4.8 Ohms	Approvals	-
Accuracy	-
