NMB Technologies Corp.

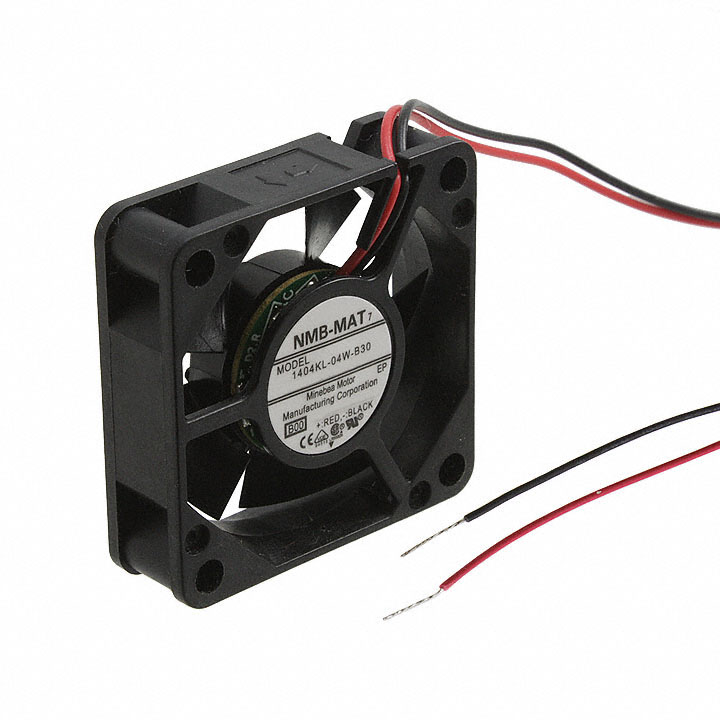

| Part Number | 1404KL-04W-B30-B00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 35X10MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7129 pcs | Data sheet | 1.1404KL-04W-B30-B00.pdf2.1404KL-04W-B30-B00.pdf3.1404KL-04W-B30-B00.pdf |
| Width | 10.00mm | Weight | 0.026 lb (11.79g) |
| Voltage Range | 8 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.062 in H2O (15.4 Pa) |
| Size / Dimension | Square - 35mm L x 35mm H | Series | 1404KL |
| RPM | 5000 RPM | Power (Watts) | 480mW |
| Other Names | 1404KL-04W-B30-B00-ND 1404KL04WB30B00 1404KL04WB30B00-ND P15604 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 19.0 dB | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.040A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 3.0 CFM (0.084m³/min) |
