NMB Technologies Corp.
| Part Number | 04010KA-05M-AT-00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|

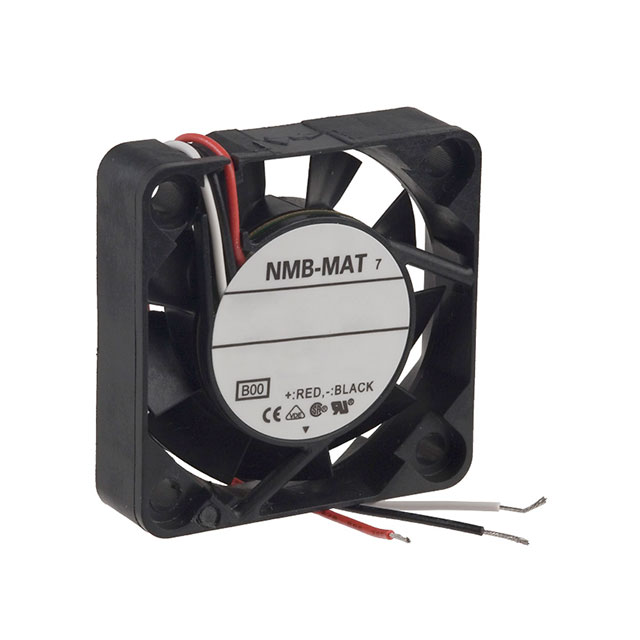

| Description | FAN AXIAL 40X10MM BALL 5VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9323 pcs | Data sheet | 1.04010KA-05M-AT-00.pdf2.04010KA-05M-AT-00.pdf3.04010KA-05M-AT-00.pdf4.04010KA-05M-AT-00.pdf |
| Width | 10.00mm | Weight | 0.033 lb (14.97g) |
| Voltage Range | 4.5 ~ 5.5VDC | Voltage - Rated | 5VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.136 in H2O (33.9 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | 04010KA |
| RPM | 5500 RPM | Power (Watts) | 600mW |
| Other Names | 1604KL-01W-B49-B50 1604KL-01W-B49-B50-ND 1604KL01WB49B50 1604KL01WB49B50-ND P19094 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 25.0 dB | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.120A | Bearing Type | Ball |
| Approvals | - | Air Flow | 5.3 CFM (0.148m³/min) |
