YB215CWCKW01-5D-EB

NKK Switches

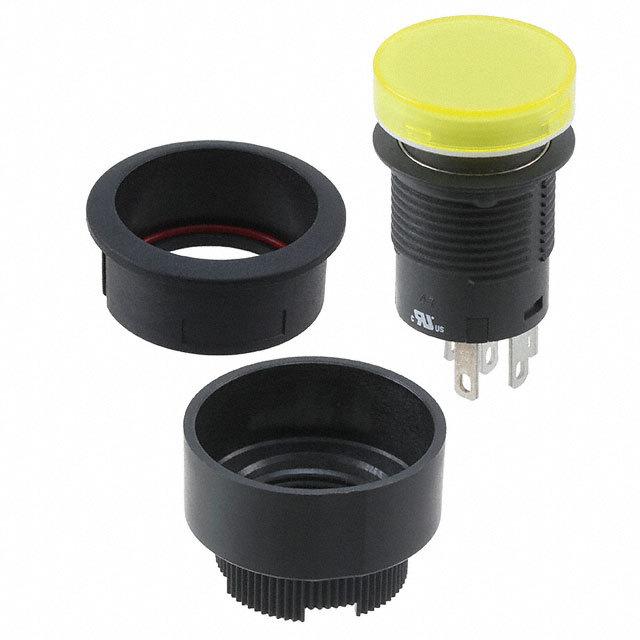

Image may be representation. See specifications for product details.

Product Overview

Part Number:	YB215CWCKW01-5D-EB
Manufacturer/Brand:	NKK Switches
Product description	SWITCH PUSHBUTTON SPDT 3A 125V
Datasheets:	YB215CWCKW01-5D-EB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4903 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4903 pcs

Reference Price (In US Dollars)

1 pcs: $7.969

10 pcs: $7.858

25 pcs: $7.746

50 pcs: $7.184

100 pcs: $7.072

250 pcs: $6.286

500 pcs: $6.062

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.969

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of YB215CWCKW01-5D-EB

Part Number	YB215CWCKW01-5D-EB	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4903 pcs	Data sheet	YB215CWCKW01-5D-EB.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Type	Standard, Illuminated	Termination Style	Solder, Quick Connect - 0.110" (2.8mm)
Switch Function	On-Mom	Series	YB2
Panel Cutout Dimensions	Circular - 22.00mm Dia	Packaging	Bulk
Other Names	360-2403 YB215CWCKW01/CUL-5D-EB YB215CWCKW01/CUL-5D-EB-ND YB215CWCKW015DEB	Operating Temperature	-25°C ~ 50°C
Mounting Type	Panel Mount, Front	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP65 - Dust Tight, Water Resistant
Illumination Voltage (Nominal)	2 VDC	Illumination Type, Color	LED, Amber
Features	Epoxy Sealed Terminals	Electrical Life	100,000 Cycles
Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front	Current Rating	3A (AC/DC)
Color - Actuator/Cap	Yellow (White Filter/Diffuser)	Circuit	SPDT
Actuator Type	Round, Button, Flush
