NKK Switches
| Part Number | WT23S | Manufacturer | NKK Switches |
|---|---|---|---|

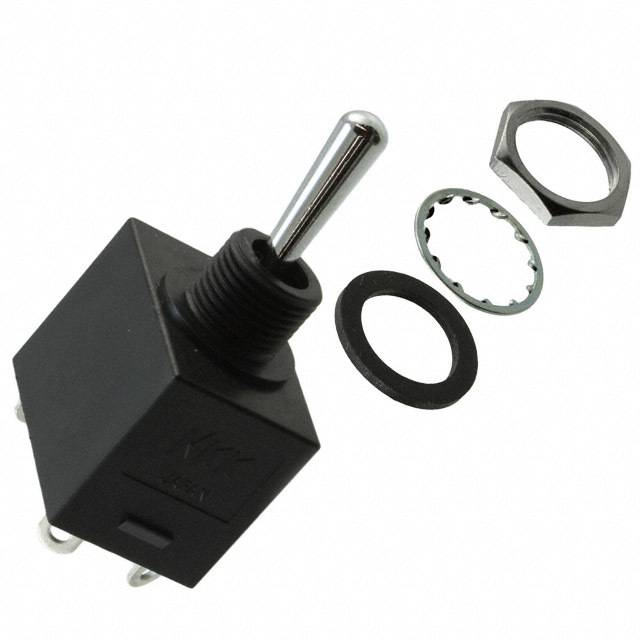

| Description | SWITCH TOGGLE DPDT 10A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5294 pcs | Data sheet | WT23S.pdf |
| Voltage Rating - DC | 30V | Voltage Rating - AC | 125V |
| Termination Style | Solder Lug | Switch Function | On-Off-On |
| Series | WT | Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Packaging | Bulk | Other Names | 360-1257 360-1257-ND 360-1961 WT23S-RO |
| Operating Temperature | -30°C ~ 70°C | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Epoxy Sealed Terminals |
| Electrical Life | 15,000 Cycles | Detailed Description | Toggle Switch DPDT Panel Mount |
| Current Rating | 10A (AC/DC) | Circuit | DPDT |
| Bushing Thread | M12 x 1 | Actuator Type | Standard Round |
| Actuator Material | Brass, Chrome Plated | Actuator Length | 17.50mm |
