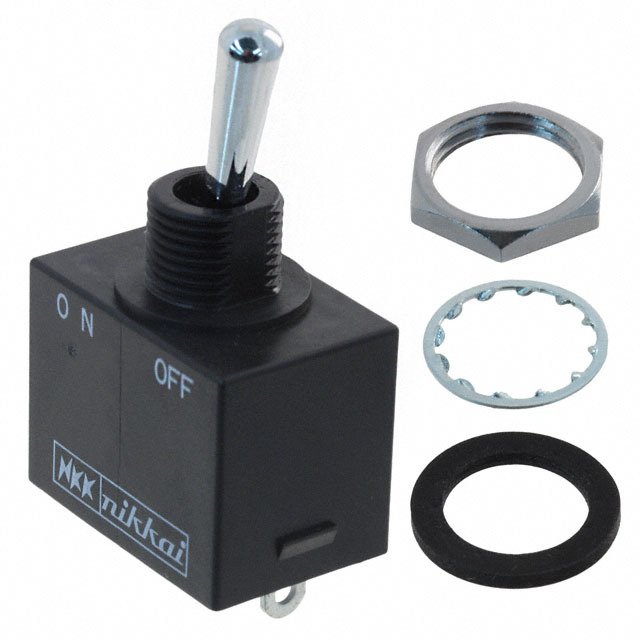

NKK Switches
| Part Number | WT11S | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TOGGLE SPST 10A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9266 pcs | Data sheet | WT11S.pdf |
| Voltage Rating - DC | 30V | Voltage Rating - AC | 125V |
| Termination Style | Solder Lug | Switch Function | On-Off |
| Series | WT | Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Packaging | Bulk | Other Names | 360-1242 360-1242-ND 360-1951 WT11S-RO |
| Operating Temperature | -30°C ~ 70°C | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Epoxy Sealed Terminals | Electrical Life | 15,000 Cycles |
| Detailed Description | Toggle Switch SPST Panel Mount | Current Rating | 10A (AC/DC) |
| Circuit | SPST | Bushing Thread | M12 x 1 |
| Actuator Type | Standard Round | Actuator Material | Brass, Chrome Plated |
| Actuator Length | 17.50mm |
