WR15AL

NKK Switches

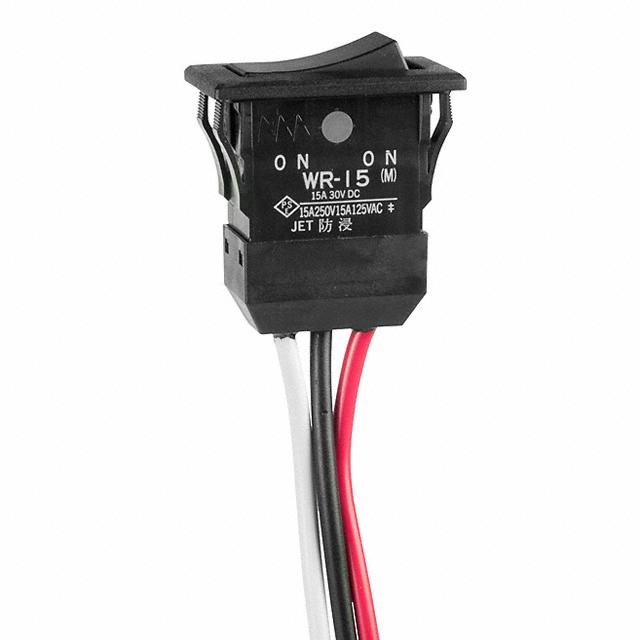

Image may be representation. See specifications for product details.

Product Overview

Part Number:	WR15AL
Manufacturer/Brand:	NKK Switches
Product description	SWITCH ROCKER SPDT 15A 125V
Datasheets:	WR15AL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4769 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4769 pcs

Reference Price (In US Dollars)

1 pcs: $8.204

10 pcs: $7.555

25 pcs: $7.339

50 pcs: $7.123

100 pcs: $6.907

250 pcs: $6.259

500 pcs: $5.828

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$8.204

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of WR15AL

Part Number	WR15AL	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4769 pcs	Data sheet	WR15AL.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Wire Leads	Switch Function	On-Mom
Series	WR	Panel Cutout Dimensions	Rectangular - 34.20mm x 17.20mm
Packaging	Bulk	Operating Temperature	-25°C ~ 85°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	30,000 Cycles	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	10,000 Cycles
Detailed Description	Rocker Switch SPDT 15A (AC/DC) 125V Panel Mount, Snap-In	Current Rating	15A (AC/DC)
Color - Actuator/Cap	Black	Circuit	SPDT
Actuator Type	Concave (Curved)	Actuator Marking	No Marking
