WR13BS

NKK Switches

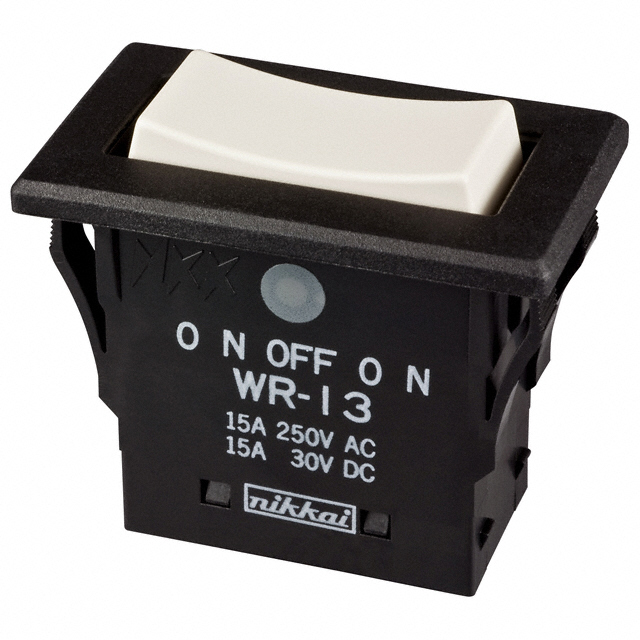

Image may be representation. See specifications for product details.

Product Overview

Part Number:	WR13BS
Manufacturer/Brand:	NKK Switches
Product description	SWITCH ROCKER SPDT 15A 125V
Datasheets:	WR13BS.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8425 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 8425 pcs

Reference Price (In US Dollars)

1 pcs: $4.66

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.66

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of WR13BS

Part Number	WR13BS	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8425 pcs	Data sheet	WR13BS.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Off-On
Series	WR	Panel Cutout Dimensions	Rectangular - 34.20mm x 17.20mm
Packaging	Bulk	Other Names	360-1522
Operating Temperature	-25°C ~ 85°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	30,000 Cycles
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch SPDT 15A (AC/DC) 125V Panel Mount, Snap-In
Current Rating	15A (AC/DC)	Color - Actuator/Cap	Ivory
Circuit	SPDT	Actuator Type	Concave (Curved)
Actuator Marking	No Marking
