WR11AF

NKK Switches

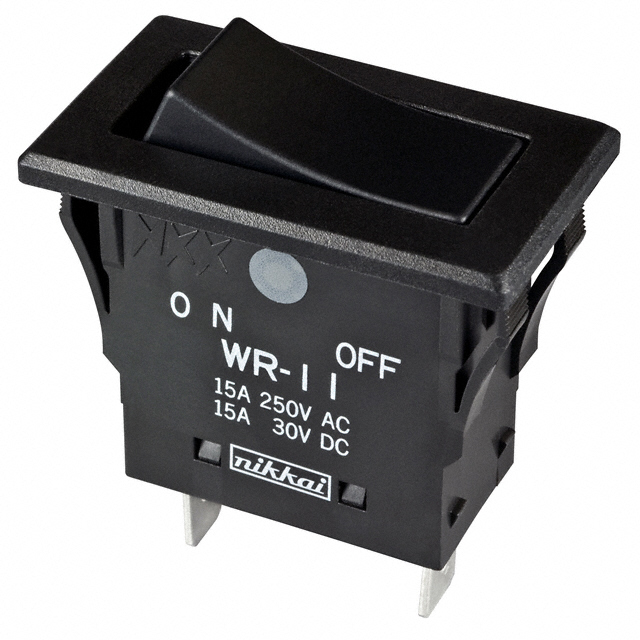

Image may be representation. See specifications for product details.

Product Overview

Part Number:	WR11AF
Manufacturer/Brand:	NKK Switches
Product description	SWITCH ROCKER SPST 15A 125V
Datasheets:	WR11AF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8570 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 8570 pcs

Reference Price (In US Dollars)

1 pcs: $4.212

10 pcs: $3.791

25 pcs: $3.686

50 pcs: $3.58

100 pcs: $3.475

250 pcs: $3.37

500 pcs: $2.948

1000 pcs: $2.79

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.212

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of WR11AF

Part Number	WR11AF	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPST 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8570 pcs	Data sheet	WR11AF.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Off
Series	WR	Panel Cutout Dimensions	Rectangular - 34.20mm x 17.20mm
Packaging	Bulk	Other Names	360-2277
Operating Temperature	-25°C ~ 85°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	30,000 Cycles
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	15,000 Cycles	Detailed Description	Rocker Switch SPST 15A (AC/DC) 125V Panel Mount, Snap-In
Current Rating	15A (AC/DC)	Color - Actuator/Cap	Black
Circuit	SPST	Actuator Type	Concave (Curved)
Actuator Marking	No Marking
