UB226SKW036F

NKK Switches

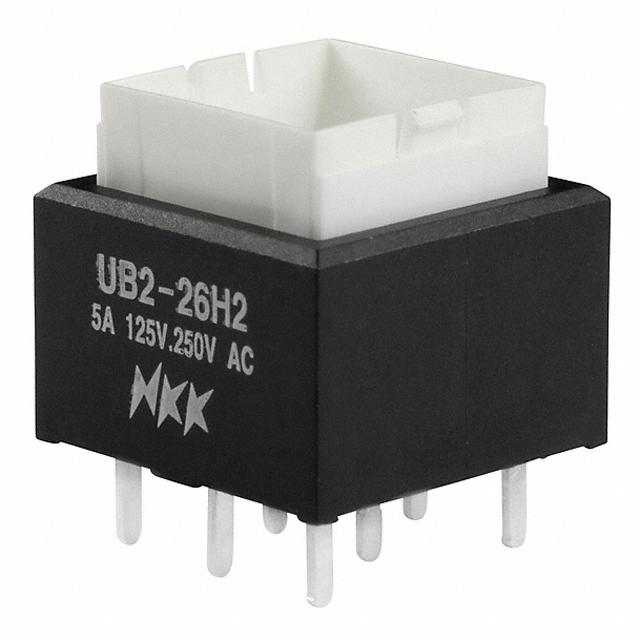

Image may be representation. See specifications for product details.

Product Overview

Part Number:	UB226SKW036F
Manufacturer/Brand:	NKK Switches
Product description	SWITCH PUSHBUTTON DPDT 5A 125V
Datasheets:	UB226SKW036F.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4848 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4848 pcs

Reference Price (In US Dollars)

1 pcs: $7.951

10 pcs: $7.839

25 pcs: $7.727

50 pcs: $7.167

100 pcs: $7.055

250 pcs: $6.271

500 pcs: $6.047

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.951

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of UB226SKW036F

Part Number	UB226SKW036F	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4848 pcs	Data sheet	UB226SKW036F.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Type	Standard, Illuminated	Termination Style	PC Pin
Switch Function	On-On	Series	UB2
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	UB226SKW036F-RO UB226SKW036F-RO-ND	Operating Temperature	-25°C ~ 50°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	200,000 Cycles	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	3.5 VDC	Illumination Type, Color	LED, Green
Features	Epoxy Sealed Terminals	Electrical Life	10,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Through Hole	Current Rating	5A (AC/DC)
Color - Actuator/Cap	-	Circuit	DPDT
Actuator Type	Plunger for Cap
