UB226KKW016CF

NKK Switches

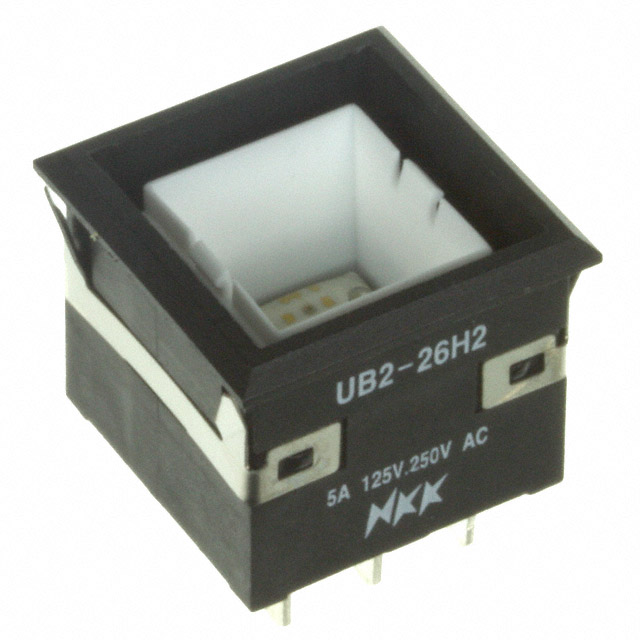

Image may be representation. See specifications for product details.

Product Overview

Part Number:	UB226KKW016CF
Manufacturer/Brand:	NKK Switches
Product description	SWITCH PUSHBUTTON DPDT 5A 125V
Datasheets:	UB226KKW016CF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5061 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5061 pcs

Reference Price (In US Dollars)

1 pcs: $6.109

10 pcs: $5.787

25 pcs: $5.707

50 pcs: $5.305

100 pcs: $5.224

250 pcs: $4.662

500 pcs: $4.501

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.109

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of UB226KKW016CF

Part Number	UB226KKW016CF	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5061 pcs	Data sheet	UB226KKW016CF.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Type	Standard, Illuminated	Termination Style	Solder Lug
Switch Function	On-On	Series	UB2
Panel Cutout Dimensions	Square - 17.40mm²	Packaging	Bulk
Operating Temperature	-25°C ~ 50°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	200,000 Cycles
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	2.1, 3.5 VDC
Illumination Type, Color	LED, Red/Green	Features	Epoxy Sealed Terminals
Electrical Life	10,000 Cycles	Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In
Current Rating	5A (AC/DC)	Color - Actuator/Cap	-
Circuit	DPDT	Actuator Type	Plunger for Cap
