SW3003A

NKK Switches

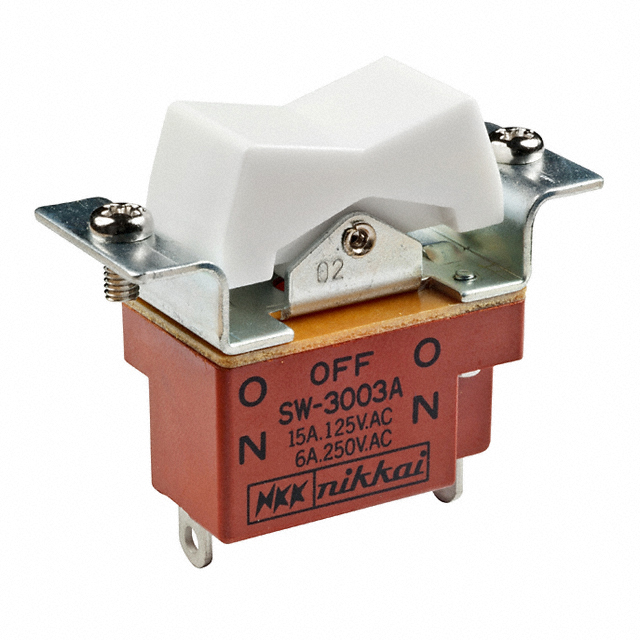

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SW3003A
Manufacturer/Brand:	NKK Switches
Product description	SWITCH ROCKER SPDT 15A 125V
Datasheets:	SW3003A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20568 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 20568 pcs

Reference Price (In US Dollars)

1 pcs: $1.615

10 pcs: $1.578

25 pcs: $1.503

50 pcs: $1.428

100 pcs: $1.352

250 pcs: $1.315

500 pcs: $1.277

1000 pcs: $1.127

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.615

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SW3003A

Part Number	SW3003A	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20568 pcs	Data sheet	SW3003A.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Off-On
Series	SW	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	SW3003A-RO SW3003A-RO-ND
Operating Temperature	-10°C ~ 70°C	Mounting Type	Panel Mount, Flange
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	25,000 Cycles	Detailed Description	Rocker Switch SPDT 15A (AC/DC) 125V Panel Mount, Flange
Current Rating	15A (AC/DC)	Color - Actuator/Cap	White
Circuit	SPDT	Actuator Type	Concave (Standard V)
Actuator Marking	No Marking
