NKK Switches

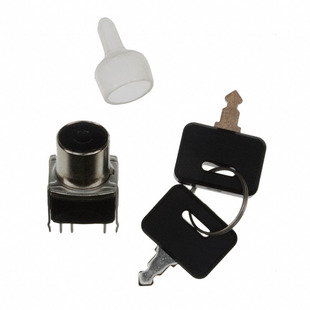

| Part Number | SK22BG13 | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH KEYLK 2POS DPDT 0.4VA 28V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6882 pcs | Data sheet | SK22BG13.pdf |
| Voltage Rating - DC | 28V | Voltage Rating - AC | 28V |
| Termination Style | PC Pin | Switch Function | On-On |
| Series | SK | Panel Cutout Dimensions | - |
| Other Names | 360-3463 SK22BG13-ND SK22BG13-RO SK22BG13-RO-ND |
Operating Temperature | -25°C ~ 70°C |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 30,000 Cycles |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Key Removable Positions | 1 only | Features | Process Sealed |
| Electrical Life | 10,000 Cycles | Detailed Description | Keylock Switch 2 Position DPDT 0.4VA (AC/DC) 28VAC 28VDC Through Hole |
| Depth Behind Flange | - | Current Rating | 0.4VA (AC/DC) |
| Contact Timing | Non-Shorting (BBM) | Contact Material | Beryllium Copper |
| Contact Finish | Gold | Circuit | DPDT |
| Angle of Throw | 90° | Actuator Type | Flat Key |
