SK13DAW01

NKK Switches

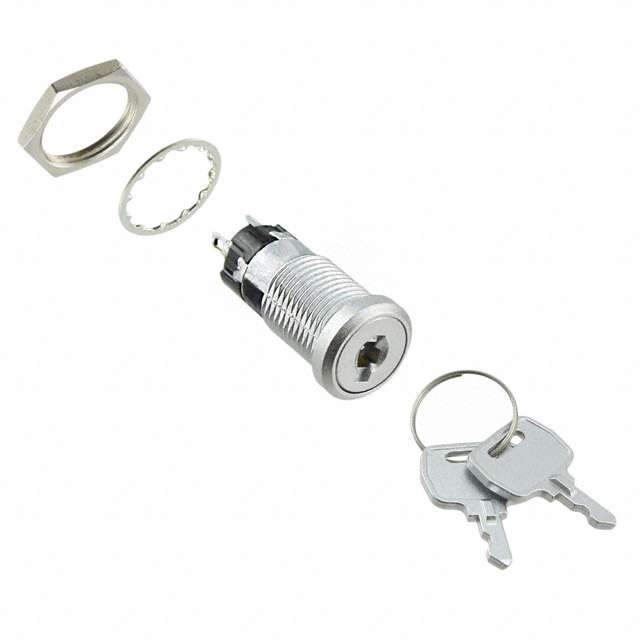

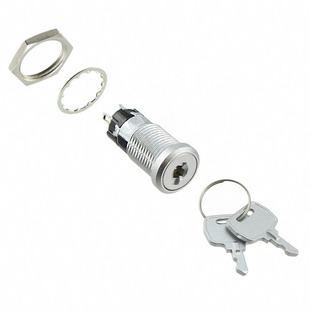

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SK13DAW01
Manufacturer/Brand:	NKK Switches
Product description	SWITCH KEYLOCK 3POS SPDT 3A 125V
Datasheets:	SK13DAW01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7393 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 7393 pcs

Reference Price (In US Dollars)

1 pcs: $4.971

10 pcs: $4.722

25 pcs: $4.474

50 pcs: $4.349

100 pcs: $3.977

250 pcs: $3.604

500 pcs: $3.479

1000 pcs: $3.355

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$4.971

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SK13DAW01

Part Number	SK13DAW01	Manufacturer	NKK Switches
Description	SWITCH KEYLOCK 3POS SPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7393 pcs	Data sheet	SK13DAW01.pdf
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-Off-On	Series	SK
Panel Cutout Dimensions	Circular - 12.00mm Dia	Other Names	360-1461 360-1461-ND 360-1937 SK13DAW01-RO
Operating Temperature	-25°C ~ 70°C	Number of Positions	3
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	30,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Key Removable Positions	All	Features	Epoxy Sealed Terminals
Electrical Life	10,000 Cycles	Detailed Description	Keylock Switch 3 Position SPDT 3A (AC) 125VAC Panel Mount
Depth Behind Flange	27.00mm	Current Rating	3A (AC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Silver (Ag)
Contact Finish	-	Circuit	SPDT
Angle of Throw	45°	Actuator Type	Flat Key
