SB25

NKK Switches

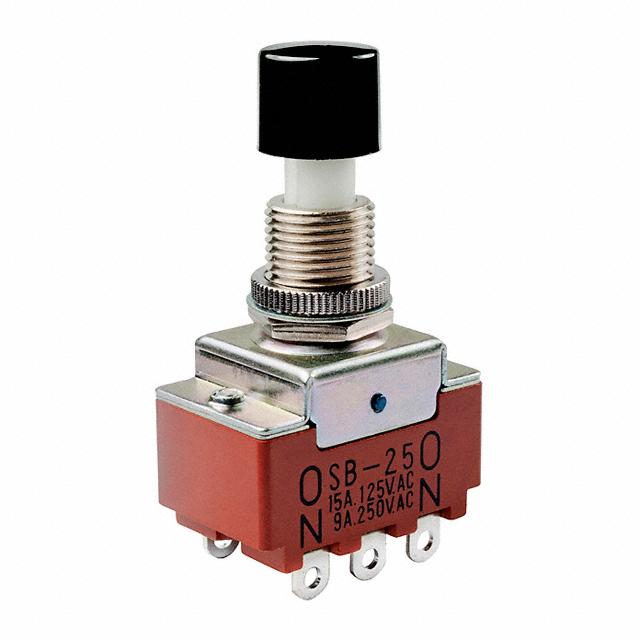

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SB25
Manufacturer/Brand:	NKK Switches
Product description	SWITCH PUSH DPDT 15A 125V
Datasheets:	SB25.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9657 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 9657 pcs

Reference Price (In US Dollars)

1 pcs: $3.222

10 pcs: $2.986

25 pcs: $2.907

50 pcs: $2.829

100 pcs: $2.671

250 pcs: $2.593

500 pcs: $2.436

1000 pcs: $2.20

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.222

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SB25

Part Number	SB25	Manufacturer	NKK Switches
Description	SWITCH PUSH DPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9657 pcs	Data sheet	SB25.pdf
Voltage Rating - AC	125V	Type	Standard
Termination Style	Solder Lug	Switch Function	On-On
Series	SB	Panel Cutout Dimensions	Circular - 12.50mm Dia
Packaging	Bulk	Other Names	SB25-RO SB25-RO-ND
Operating Temperature	-10°C ~ 70°C	Mounting Type	Panel Mount, Rear
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	30,000 Cycles
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Pushbutton Switch DPDT Standard Panel Mount, Rear
Current Rating	15A (AC)	Color - Actuator/Cap	Black
Circuit	DPDT	Actuator Type	Round, Button
