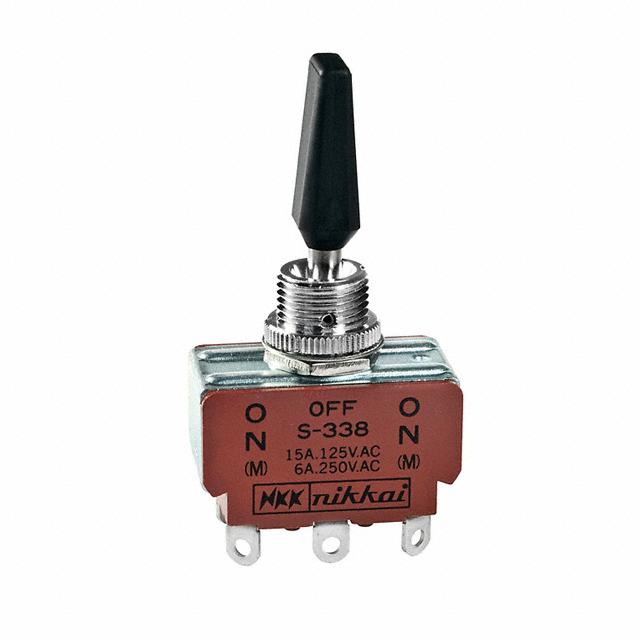

NKK Switches
| Part Number | S338R | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 15A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8777 pcs | Data sheet | S338R.pdf |
| Voltage Rating - DC | 30V | Voltage Rating - AC | 125V |
| Termination Style | Solder Lug | Switch Function | Mom-Off-Mom |
| Series | S300R | Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Packaging | Bulk | Other Names | 360-3004 Q2627687 S338R-ND S338R-RO S338R-RO-ND |
| Operating Temperature | -10°C ~ 70°C | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Black Actuator |
| Electrical Life | 25,000 Cycles | Detailed Description | Toggle Switch DPDT Panel Mount |
| Current Rating | 15A (AC), 20A (DC) | Circuit | DPDT |
| Bushing Thread | M12 x 1 | Actuator Type | Flatted |
| Actuator Material | Polybutylene Terephthalate (PBT) | Actuator Length | 27.00mm |
