S301

NKK Switches

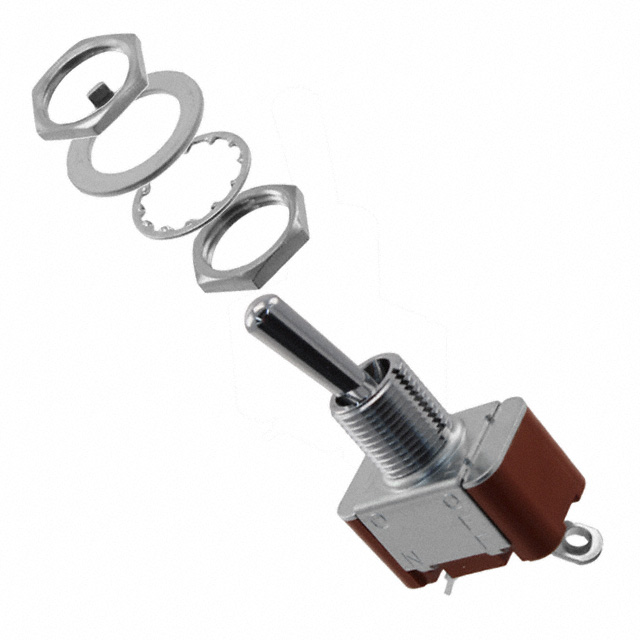

Image may be representation. See specifications for product details.

Product Overview

Part Number:	S301
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE SPST 15A 125V
Datasheets:	S301.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20368 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 20368 pcs

Reference Price (In US Dollars)

1 pcs: $1.882

10 pcs: $1.792

25 pcs: $1.747

50 pcs: $1.702

100 pcs: $1.657

250 pcs: $1.523

500 pcs: $1.344

1000 pcs: $1.209

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.882

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of S301

Part Number	S301	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPST 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20368 pcs	Data sheet	S301.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Off
Series	S300	Panel Cutout Dimensions	Circular - 12.50mm Dia
Packaging	Bulk	Other Names	360-1185 360-1185-ND 360-1896 S301-RO
Operating Temperature	-10°C ~ 70°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	-	Electrical Life	25,000 Cycles
Detailed Description	Toggle Switch SPST Panel Mount	Current Rating	15A (AC), 20A (DC)
Circuit	SPST	Bushing Thread	M12 x 1
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	17.50mm
