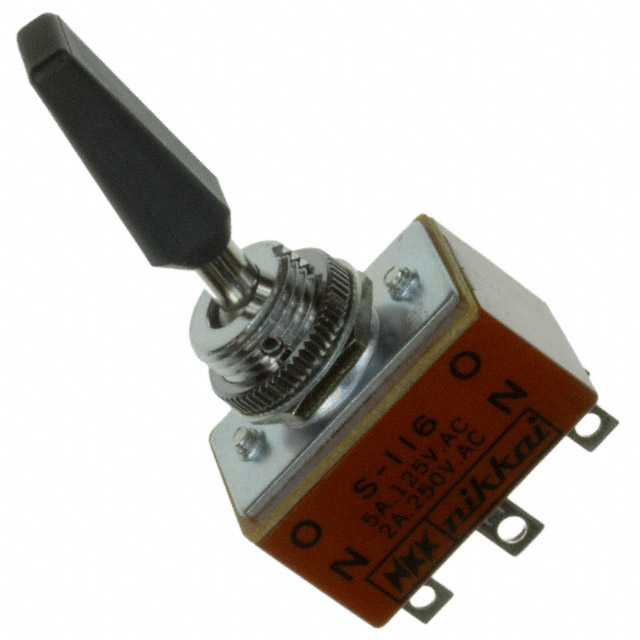

S116R

NKK Switches

Image may be representation. See specifications for product details.

Product Overview

Part Number:	S116R
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE DPDT 5A 125V
Datasheets:	S116R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16702 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 16702 pcs

Reference Price (In US Dollars)

1 pcs: $2.348

10 pcs: $2.231

25 pcs: $2.172

50 pcs: $2.113

100 pcs: $2.055

250 pcs: $1.937

500 pcs: $1.644

1000 pcs: $1.556

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.348

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of S116R

Part Number	S116R	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16702 pcs	Data sheet	S116R.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-On
Series	S	Panel Cutout Dimensions	Circular - 12.50mm Dia
Packaging	Bulk	Other Names	360-3281 Q4104232 S116R-ND S116R-RO S116R-RO-ND
Operating Temperature	-10°C ~ 70°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Black Actuator
Electrical Life	10,000 Cycles	Detailed Description	Toggle Switch DPDT Panel Mount
Current Rating	5A (AC/DC)	Circuit	DPDT
Bushing Thread	M12 x 1	Actuator Type	Paddle
Actuator Material	Polyamide (PA), Nylon	Actuator Length	29.00mm
