P2022E

NKK Switches

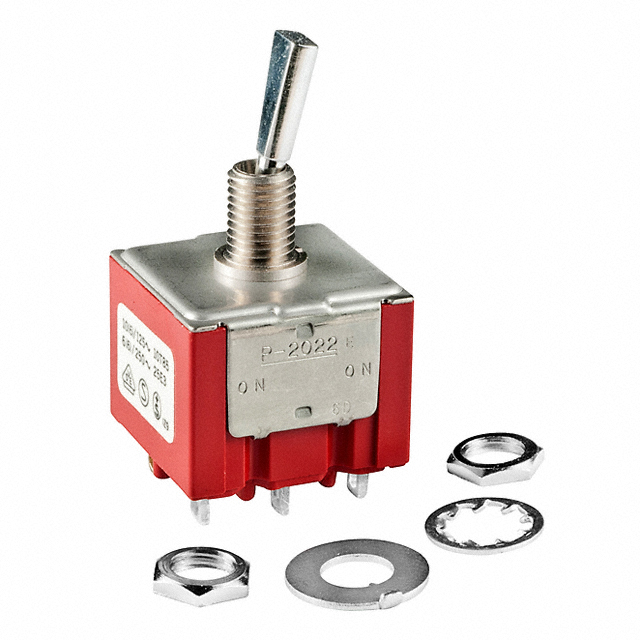

Image may be representation. See specifications for product details.

Product Overview

Part Number:	P2022E
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE DPDT 10A 125V
Datasheets:	P2022E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8211 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 8211 pcs

Reference Price (In US Dollars)

1 pcs: $4.003

10 pcs: $3.896

25 pcs: $3.791

50 pcs: $3.58

100 pcs: $3.475

250 pcs: $3.37

500 pcs: $2.843

1000 pcs: $2.738

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.003

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of P2022E

Part Number	P2022E	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8211 pcs	Data sheet	P2022E.pdf
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-On	Series	P
Panel Cutout Dimensions	Circular - 6.35mm Dia	Packaging	Bulk
Other Names	P2022E-RO P2022E-RO-ND	Operating Temperature	-10°C ~ 85°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	-	Electrical Life	25,000 Cycles
Detailed Description	Toggle Switch DPDT Panel Mount	Current Rating	10A (AC)
Circuit	DPDT	Bushing Thread	M6 x 0.75
Actuator Type	Flatted	Actuator Material	Brass, Chrome Plated
Actuator Length	11.40mm
