NKK Switches

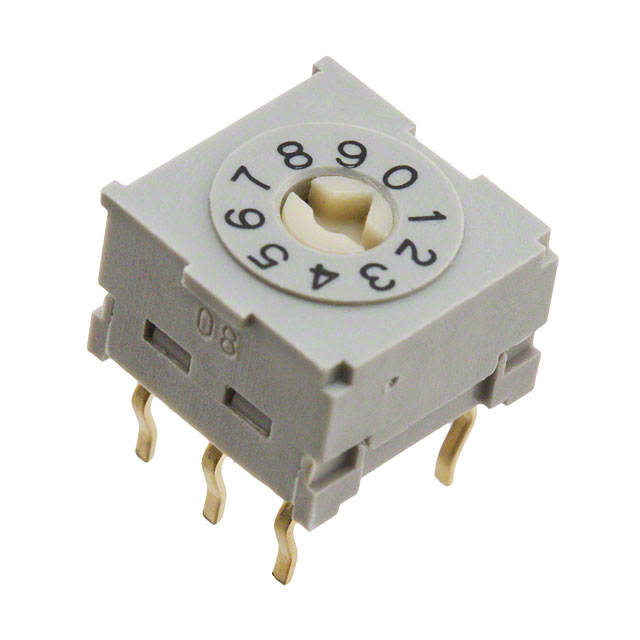

| Part Number | NDFR10P | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH ROTARY DIP BCD 100MA 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22771 pcs | Data sheet | NDFR10P.pdf |
| Washable | Yes | Voltage Rating | 5VDC |
| Termination Style | PC Pin | Series | ND |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tray |
| Other Names | 360-3251 NDFR10P-ND |
Operating Temperature | -25°C ~ 75°C |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 20,000 Steps |
| Manufacturer Standard Lead Time | 5 Weeks | Length | 0.312" (7.92mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.205" (5.20mm) |
| Features | Process Sealed | Electrical Life | 20,000 Cycles |
| Detailed Description | Dip Switch BCD 10 Position Through Hole Rotary for Tool Actuator 100mA 5VDC | Current Rating | 100mA |
| Contact Material | Beryllium Copper | Contact Finish | Gold |
| Circuit | BCD | California Prop 65 | Warning Information WARNING: This product can expose you to chemicals including Antimony oxide (Antimony trioxide) and Nickel (Metallic) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov. |
| Body Material | Polyamide (PA), Nylon, Glass Filled | Actuator Type | Rotary for Tool |
| Actuator Level | Flush, Recessed |
