NKK Switches

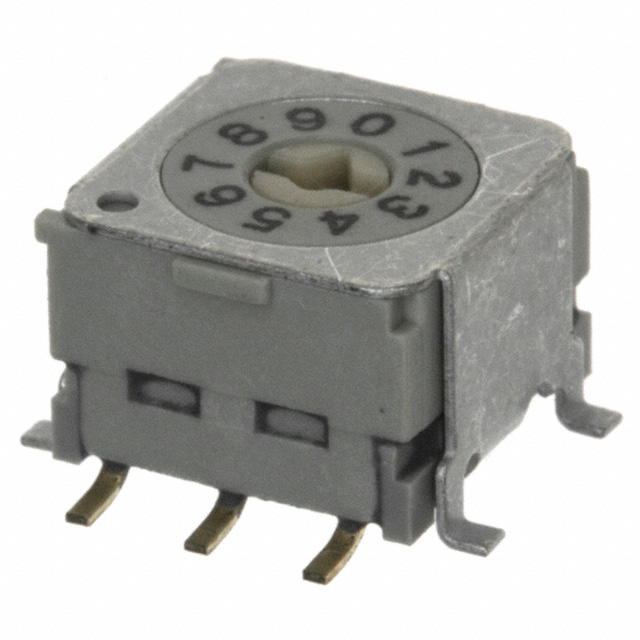

| Part Number | ND3FR10B-R | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH ROTARY DIP BCD 100MA 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15786 pcs | Data sheet | ND3FR10B-R.pdf |
| Washable | Yes | Voltage Rating | 5VDC |
| Termination Style | Gull Wing | Series | ND3 |
| Pitch | 0.100" (2.54mm), Full | Packaging | Cut Tape (CT) |
| Other Names | 360-3295-1 ND3FR10B-R-ROCT ND3FR10B-R-ROCT-ND ND3FR10B-RCT-ND |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 20,000 Steps |
| Manufacturer Standard Lead Time | 10 Weeks | Length | 0.320" (8.13mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.220" (5.59mm) |
| Features | Epoxy Sealed Terminals | Electrical Life | 20,000 Steps |
| Detailed Description | Dip Switch BCD 10 Position Surface Mount Rotary for Tool Actuator 100mA 5VDC | Current Rating | 100mA |
| Contact Material | Beryllium Copper | Contact Finish | Gold |
| Circuit | BCD | Body Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Type | Rotary for Tool | Actuator Level | Flush, Recessed |
