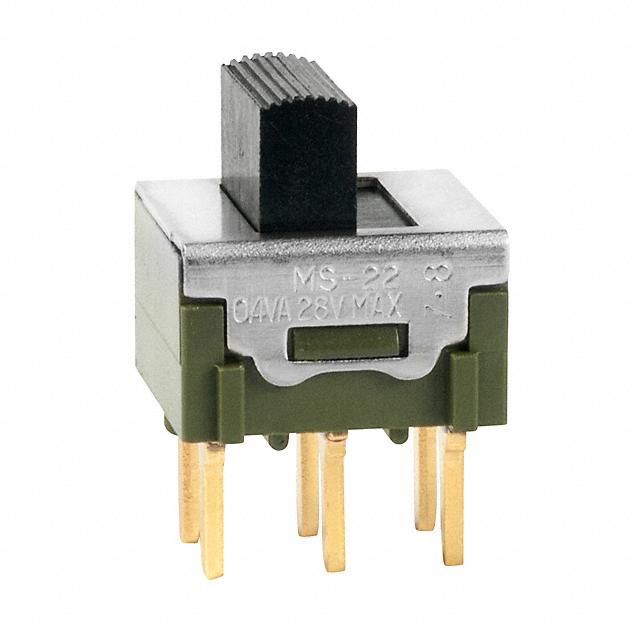

MS22BNG03

NKK Switches

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MS22BNG03
Manufacturer/Brand:	NKK Switches
Product description	SWITCH SLIDE DPDT 0.4VA 28V
Datasheets:	MS22BNG03.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15823 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 15823 pcs

Reference Price (In US Dollars)

1 pcs: $2.193

10 pcs: $2.146

25 pcs: $2.05

50 pcs: $1.812

100 pcs: $1.788

250 pcs: $1.764

500 pcs: $1.454

1000 pcs: $1.359

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.193

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MS22BNG03

Part Number	MS22BNG03	Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15823 pcs	Data sheet	MS22BNG03.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	28V
Termination Style	PC Pin	Switch Travel	2.20mm
Switch Function	On-On	Series	MS
Packaging	Bulk	Other Names	360-2396 MS22BNG03-ND
Operating Temperature	-30°C ~ 85°C	Operating Force	-
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	5 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Epoxy Sealed Terminals
Electrical Life	50,000 Cycles	Detailed Description	Slide Switch DPDT Through Hole
Current Rating	0.4VA (AC/DC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Copper	Contact Finish	Gold
Circuit	DPDT	Actuator Type	Standard
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled	Actuator Length	5.10mm
