NKK Switches

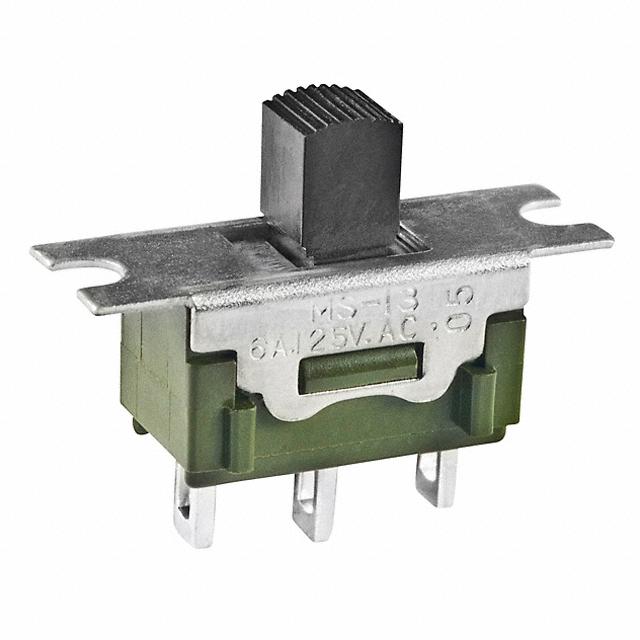

| Part Number | MS13AFW01 | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH SLIDE SPDT 6A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23188 pcs | Data sheet | MS13AFW01.pdf |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Travel | 3.50mm | Switch Function | On-Off-On |
| Series | MS | Packaging | Bulk |
| Other Names | 360-2884 MS13AFW01-ND MS13AFW01-RO MS13AFW01-RO-ND |
Operating Temperature | -30°C ~ 85°C |
| Operating Force | - | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 100,000 Cycles |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Epoxy Sealed Terminals | Electrical Life | 25,000 Cycles |
| Detailed Description | Slide Switch SPDT Panel Mount | Current Rating | 6A (AC) |
| Contact Timing | Non-Shorting (BBM) | Contact Material | Silver Alloy |
| Contact Finish | Silver | Circuit | SPDT |
| Actuator Type | Standard | Actuator Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Actuator Length | 5.10mm |
