M2T22S4A5A03

NKK Switches

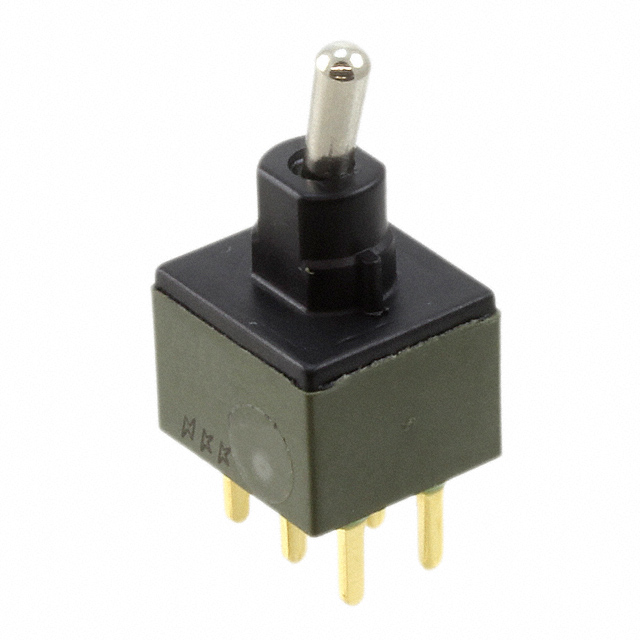

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M2T22S4A5A03
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE DPDT 6A 125V
Datasheets:	M2T22S4A5A03.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12732 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 12732 pcs

Reference Price (In US Dollars)

1 pcs: $2.312

10 pcs: $2.196

25 pcs: $2.139

50 pcs: $2.081

100 pcs: $2.023

250 pcs: $1.907

500 pcs: $1.618

1000 pcs: $1.532

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.312

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M2T22S4A5A03

Part Number	M2T22S4A5A03	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12732 pcs	Data sheet	M2T22S4A5A03.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Function	On-On
Series	M2	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	360-3126 M2T22S4A5A03-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Process Sealed
Electrical Life	25,000 Cycles	Detailed Description	Toggle Switch DPDT Through Hole
Current Rating	6A (AC), 4A (DC)	Circuit	DPDT
Bushing Thread	Unthreaded	Actuator Type	Standard Round
Actuator Material	Brass, Chrome Plated	Actuator Length	7.62mm
