M2B25AA5W03-FB

NKK Switches

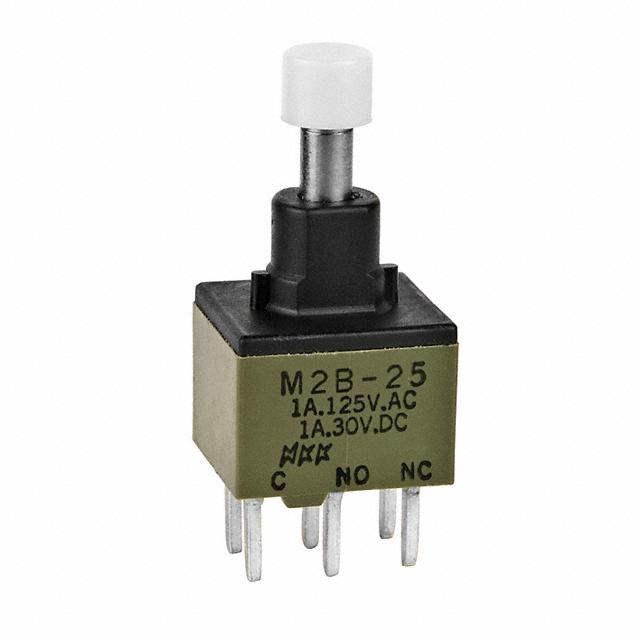

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M2B25AA5W03-FB
Manufacturer/Brand:	NKK Switches
Product description	SWITCH PUSHBUTTON DPDT 1A 125V
Datasheets:	M2B25AA5W03-FB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12917 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 12917 pcs

Reference Price (In US Dollars)

1 pcs: $2.428

10 pcs: $2.251

25 pcs: $2.192

50 pcs: $2.133

100 pcs: $2.014

250 pcs: $1.955

500 pcs: $1.837

1000 pcs: $1.659

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.428

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M2B25AA5W03-FB

Part Number	M2B25AA5W03-FB	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 1A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12917 pcs	Data sheet	M2B25AA5W03-FB.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Type	Standard	Termination Style	PC Pin
Switch Function	On-Mom	Series	M2
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	M2B25AA5W03FB	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	200,000 Cycles	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Process Sealed	Electrical Life	25,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard Through Hole	Current Rating	1A (AC/DC)
Color - Actuator/Cap	White	Circuit	DPDT
Actuator Type	Round, Button
